TwoSum Improvements and Analysis

CS 351: Analysis of Algorithms

Author

Affiliation

Lucas P. Cordova, Ph.D.

Willamette University

Objectives

By the end of this lecture, you will:

• Understand the Zero-Sum Pairs counting problem
• Evaluate three different approaches with varying time complexities

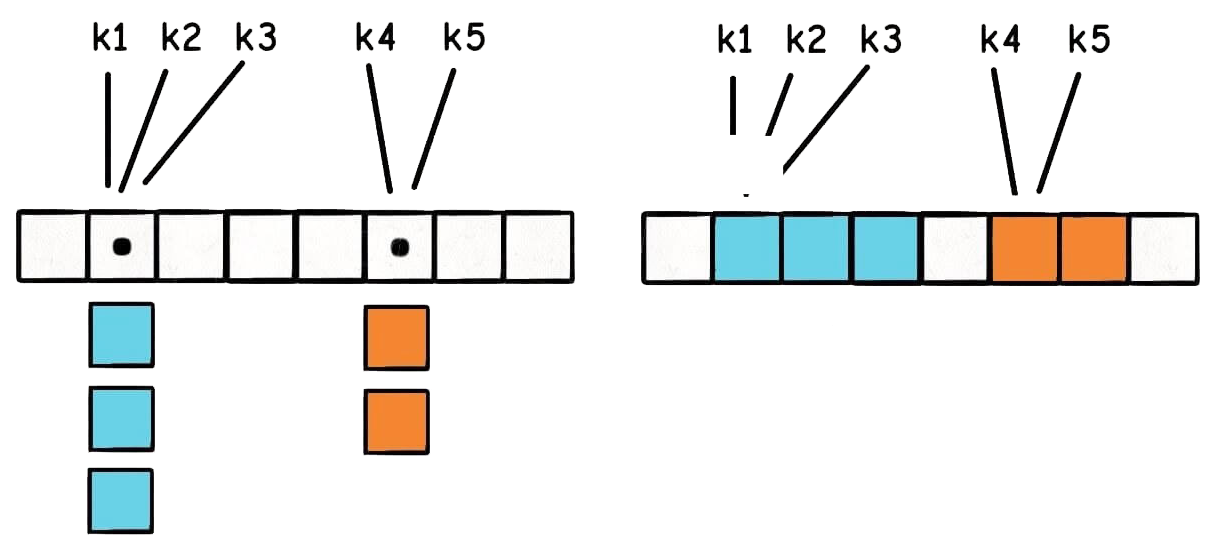

• Understand hash tables and their performance benefits
• Analyze space-time tradeoffs in algorithm design
• Quantify performance improvements through complexity analysis
• Handle edge cases including duplicates and multiple pairs

Problem Statement

NoteThe Zero-Sum Pairs Challenge

Given an array of integers, count all pairs of elements that sum to exactly zero.

Requirements:

• Count all unique pairs (i, j) where i < j
• arr[i] + arr[j] = 0
• Each element can be used in multiple pairs
• Return the total count of such pairs

Example Walkthrough

from typing import List, Tuple, Dict, Optional

def example_input() -> Tuple[List[int], int]:
    """Demonstrate the problem with a simple example"""
    arr = [1, -1, 2, -2, 3, 0, 0]
    # Pairs that sum to 0:
    # (1, -1) at indices (0, 1)
    # (2, -2) at indices (2, 3)
    # (0, 0) at indices (5, 6)
    # Total: 3 pairs
    expected_count = 3
    return arr, expected_count

arr, expected = example_input()
print(f"Input array: {arr}")
print(f"Expected count: {expected}")
print("\nPairs that sum to zero:")
print("  arr[0] + arr[1] = 1 + (-1) = 0")
print("  arr[2] + arr[3] = 2 + (-2) = 0")
print("  arr[5] + arr[6] = 0 + 0 = 0")

Input array: [1, -1, 2, -2, 3, 0, 0]
Expected count: 3

Pairs that sum to zero:
  arr[0] + arr[1] = 1 + (-1) = 0
  arr[2] + arr[3] = 2 + (-2) = 0
  arr[5] + arr[6] = 0 + 0 = 0

Quick Check

1. Array[3, -3, 5, -5, 3], how many pairs sum to zero?
   • Answer: 2 pairs: (3, -3) and (5, -5)
2. Why only count pairs where i < j?
   • Answer: To avoid double counting (i.e., (a,b) and (b,a))
3. Can the same element be part of multiple pairs? e.g. Array[1, -1, 1]
   • Answer: Yes! Example: In [1, -1, 1], the -1 at index 1 pairs with both 1s, forming 2 pairs total.
4. How is this different from finding pairs that sum to target = 10?
   • Answer: Same algorithm structure, but for zero-sum we can optimize by knowing we need x and -x (opposites). For arbitrary targets, we need x and (target-x).

Approach 1: Brute Force Solution

The Intuitive Approach

The most straightforward solution checks every possible pair of numbers.

import time
import random
from typing import List, Tuple

def two_sum_brute_force(arr: List[int]) -> Tuple[int, int]:
    """
    Count pairs that sum to exactly 0 using brute force

    Args:
        arr: List of integers

    Returns:
        Tuple of (count of zero-sum pairs, number of comparisons made)

    Time Complexity: O(n²)
    Space Complexity: O(1)
    """
    count = 0
    n = len(arr)
    comparisons = 0

    for i in range(n):
        for j in range(i + 1, n):
            comparisons += 1
            if arr[i] + arr[j] == 0:
                count += 1

    return count, comparisons

# Test the brute force solution
test_arrays = [
    [1, -1, 2, -2, 3],
    [0, 0, 0],
    [5, -5, 10, -10, 5, -5],
    [1, 2, 3, 4, 5]
]

for arr in test_arrays:
    result, comps = two_sum_brute_force(arr)
    print(f"Array: {arr}")
    print(f"  Zero-sum pairs: {result}")
    print(f"  Comparisons made: {comps}")
    print()

Array: [1, -1, 2, -2, 3]
  Zero-sum pairs: 2
  Comparisons made: 10

Array: [0, 0, 0]
  Zero-sum pairs: 3
  Comparisons made: 3

Array: [5, -5, 10, -10, 5, -5]
  Zero-sum pairs: 5
  Comparisons made: 15

Array: [1, 2, 3, 4, 5]
  Zero-sum pairs: 0
  Comparisons made: 10

Visualizing Pair Detection

def visualize_brute_force_pairs(arr: List[int]) -> None:
    """Visualize how brute force finds all zero-sum pairs"""

    print("Brute Force Pair Detection\n")
    print(f"Array: {arr}\n")

    n = len(arr)
    pairs_found = []
    comparison_count = 0

    print("Checking all pairs:")
    print("-" * 50)

    for i in range(n):
        for j in range(i + 1, n):
            comparison_count += 1
            sum_val = arr[i] + arr[j]
            is_zero = sum_val == 0

            status = "ZERO-SUM PAIR!" if is_zero else ""
            symbol = "✓" if is_zero else ""
            print(f"Compare [{i}]={arr[i]:3} + [{j}]={arr[j]:3} = {sum_val:3} {symbol} {status}")

            if is_zero:
                pairs_found.append((i, j, arr[i], arr[j]))

    print("-" * 50)
    print(f"\nTotal comparisons: {comparison_count}")
    print(f"Zero-sum pairs found: {len(pairs_found)}")

    if pairs_found:
        print("\nPairs detail:")
        for i, j, val1, val2 in pairs_found:
            print(f"  indices ({i}, {j}): {val1} + {val2} = 0")

# Demonstrate with an example
demo_arr = [2, -2, 1, -1, 3, 0]
visualize_brute_force_pairs(demo_arr)

Brute Force Pair Detection

Array: [2, -2, 1, -1, 3, 0]

Checking all pairs:
--------------------------------------------------
Compare [0]=  2 + [1]= -2 =   0 ✓ ZERO-SUM PAIR!
Compare [0]=  2 + [2]=  1 =   3
Compare [0]=  2 + [3]= -1 =   1
Compare [0]=  2 + [4]=  3 =   5
Compare [0]=  2 + [5]=  0 =   2
Compare [1]= -2 + [2]=  1 =  -1
Compare [1]= -2 + [3]= -1 =  -3
Compare [1]= -2 + [4]=  3 =   1
Compare [1]= -2 + [5]=  0 =  -2
Compare [2]=  1 + [3]= -1 =   0 ✓ ZERO-SUM PAIR!
Compare [2]=  1 + [4]=  3 =   4
Compare [2]=  1 + [5]=  0 =   1
Compare [3]= -1 + [4]=  3 =   2
Compare [3]= -1 + [5]=  0 =  -1
Compare [4]=  3 + [5]=  0 =   3
--------------------------------------------------

Total comparisons: 15
Zero-sum pairs found: 2

Pairs detail:
  indices (0, 1): 2 + -2 = 0
  indices (2, 3): 1 + -1 = 0

Understanding Arithmetic Series (Simple Explanation)

What is Adding Numbers in a Pattern?

Imagine you have a staircase. The first step has 5 blocks, the second has 4 blocks, the third has 3 blocks, and so on. How many blocks total do you have?

graph TD
    subgraph "Staircase of Numbers"
        A["Step 1: 5 blocks<br/>■■■■■"]
        B["Step 2: 4 blocks<br/>■■■■"]
        C["Step 3: 3 blocks<br/>■■■"]
        D["Step 4: 2 blocks<br/>■■"]
        E["Step 5: 1 block<br/>■"]
    end

    A --> F["Total: 5 + 4 + 3 + 2 + 1 = ?"]
    B --> F
    C --> F
    D --> F
    E --> F

    style A fill:#e1f5fe
    style B fill:#b3e5fc
    style C fill:#81d4fa
    style D fill:#4fc3f7
    style E fill:#29b6f6

This is called an arithmetic series - it’s just a fancy name for adding up numbers that follow a pattern.

The Clever Trick to Add Them Quickly

Here’s a clever trick discovered by a mathematician named Gauss:

def gauss_trick_explanation() -> None:
    print("THE GAUSS TRICK: Adding 1 + 2 + 3 + 4 + 5")
    print("=" * 50)

    print("\nStep 1: Write the numbers forwards and backwards")
    print("  Forward:  1 + 2 + 3 + 4 + 5")
    print("  Backward: 5 + 4 + 3 + 2 + 1")

    print("\nStep 2: Add each column")
    print("  1 + 5 = 6")
    print("  2 + 4 = 6")
    print("  3 + 3 = 6")
    print("  4 + 2 = 6")
    print("  5 + 1 = 6")

    print("\nStep 3: Notice the pattern!")
    print("  We get 6 five times: 6 × 5 = 30")

    print("\nStep 4: But wait! We counted everything twice")
    print("  (once forward, once backward)")
    print("  So the real answer is: 30 ÷ 2 = 15")

    print("\n" + "=" * 50)
    print("FORMULA: Sum = n × (n + 1) ÷ 2")
    print("Where n is the last number you're adding to")
    print("\nLet's verify: 5 × 6 ÷ 2 = 30 ÷ 2 = 15 ✓")

gauss_trick_explanation()

THE GAUSS TRICK: Adding 1 + 2 + 3 + 4 + 5
==================================================

Step 1: Write the numbers forwards and backwards
  Forward:  1 + 2 + 3 + 4 + 5
  Backward: 5 + 4 + 3 + 2 + 1

Step 2: Add each column
  1 + 5 = 6
  2 + 4 = 6
  3 + 3 = 6
  4 + 2 = 6
  5 + 1 = 6

Step 3: Notice the pattern!
  We get 6 five times: 6 × 5 = 30

Step 4: But wait! We counted everything twice
  (once forward, once backward)
  So the real answer is: 30 ÷ 2 = 15

==================================================
FORMULA: Sum = n × (n + 1) ÷ 2
Where n is the last number you're adding to

Let's verify: 5 × 6 ÷ 2 = 30 ÷ 2 = 15 ✓

Visual Representation of the Pairing Trick

graph LR
    subgraph "Pairing Numbers"
        A1["1"] -.-> |"add"| B5["5"]
        A2["2"] -.-> |"add"| B4["4"]
        A3["3"] -.-> |"add"| B3["3"]
        A4["4"] -.-> |"add"| B2["2"]
        A5["5"] -.-> |"add"| B1["1"]

        B5 --> C1["= 6"]
        B4 --> C2["= 6"]
        B3 --> C3["= 6"]
        B2 --> C4["= 6"]
        B1 --> C5["= 6"]
    end

    C1 --> D["5 pairs × 6 = 30"]
    C2 --> D
    C3 --> D
    C4 --> D
    C5 --> D
    D --> E["But we counted twice!<br/>30 ÷ 2 = 15"]

    style E fill:#c8e6c9

How This Applies to Our Algorithm

def explain_algorithm_arithmetic() -> None:
    """
    Connect arithmetic series to the brute force algorithm
    """
    print("HOW MANY PAIRS DO WE CHECK?")
    print("=" * 50)

    print("\nImagine we have 5 numbers: [A, B, C, D, E]")
    print("\nWe need to check these pairs:")
    print("  From A: check with B, C, D, E → 4 pairs")
    print("  From B: check with C, D, E    → 3 pairs")
    print("  From C: check with D, E       → 2 pairs")
    print("  From D: check with E          → 1 pair")
    print("  From E: (no one left)         → 0 pairs")

    print("\nTotal pairs: 4 + 3 + 2 + 1 + 0 = 10")

    print("\n" + "-" * 50)
    print("This is just like our staircase!")
    print("We're adding: 4 + 3 + 2 + 1")

    print("\nUsing the formula:")
    print("  Sum = 4 × 5 ÷ 2 = 20 ÷ 2 = 10 ✓")

    print("\nFor n items, we check:")
    print("  (n-1) + (n-2) + ... + 2 + 1 pairs")
    print("  Which equals: (n-1) × n ÷ 2")

explain_algorithm_arithmetic()

HOW MANY PAIRS DO WE CHECK?
==================================================

Imagine we have 5 numbers: [A, B, C, D, E]

We need to check these pairs:
  From A: check with B, C, D, E → 4 pairs
  From B: check with C, D, E    → 3 pairs
  From C: check with D, E       → 2 pairs
  From D: check with E          → 1 pair
  From E: (no one left)         → 0 pairs

Total pairs: 4 + 3 + 2 + 1 + 0 = 10

--------------------------------------------------
This is just like our staircase!
We're adding: 4 + 3 + 2 + 1

Using the formula:
  Sum = 4 × 5 ÷ 2 = 20 ÷ 2 = 10 ✓

For n items, we check:
  (n-1) + (n-2) + ... + 2 + 1 pairs
  Which equals: (n-1) × n ÷ 2

Deriving the Brute Force Complexity

def analyze_brute_force_iterations(n: int) -> None:
    """
    Detailed analysis of how many comparisons the brute force algorithm makes
    """
    print(f"Analyzing Brute Force for array of size {n}\n")
    print("Nested Loop Structure:")
    print("for i in range(n):          # Outer loop")
    print("    for j in range(i+1, n):  # Inner loop")
    print("        compare(arr[i], arr[j])")
    print("\n" + "="*60)

    # Show iterations for each value of i
    print("\nIterations breakdown:")
    print(f"{'i':<10} {'j ranges from':<20} {'Comparisons':<15}")
    print("-"*45)

    total = 0
    iterations_per_i = []

    for i in range(n):
        j_start = i + 1
        j_end = n - 1
        count = n - (i + 1)
        iterations_per_i.append(count)
        total += count

        if i < 5 or i == n-1:  # Show first few and last
            if j_start <= j_end:
                print(f"{i:<10} {f'{j_start} to {j_end}':<20} {count:<15}")
            else:
                print(f"{i:<10} {'(none)':<20} {count:<15}")
        elif i == 5:
            print(f"{'...':<10} {'...':<20} {'...':<15}")

    print("-"*45)
    print(f"{'TOTAL':<10} {'':<20} {total:<15}")

    # Show the arithmetic series
    print("\n" + "="*60)
    print("This forms an arithmetic series:")
    series_str = " + ".join(str(x) for x in iterations_per_i[:min(5, n)])
    if n > 5:
        series_str += " + ... + " + str(iterations_per_i[-1])
    print(f"Total = {series_str}")
    print(f"Total = (n-1) + (n-2) + (n-3) + ... + 2 + 1")

    # Derive the formula
    print("\nMathematical Derivation:")
    print("-"*40)
    print("Let S = (n-1) + (n-2) + ... + 2 + 1")
    print("This is the sum of first (n-1) natural numbers")
    print("\nUsing the arithmetic series formula:")
    print("Sum of 1 to k = k(k+1)/2")
    print(f"\nTherefore: S = (n-1)((n-1)+1)/2")
    print(f"           S = (n-1)(n)/2")
    print(f"           S = {(n-1)*n//2}")

    # Verify
    calculated = (n-1) * n // 2
    print(f"\nVerification: {total} = {calculated} ✓")

# Demonstrate with different sizes
for size in [5, 10]:
    analyze_brute_force_iterations(size)
    print("\n" + "="*80 + "\n")

Analyzing Brute Force for array of size 5

Nested Loop Structure:
for i in range(n):          # Outer loop
    for j in range(i+1, n):  # Inner loop
        compare(arr[i], arr[j])

============================================================

Iterations breakdown:
i          j ranges from        Comparisons
---------------------------------------------
0          1 to 4               4
1          2 to 4               3
2          3 to 4               2
3          4 to 4               1
4          (none)               0
---------------------------------------------
TOTAL                           10

============================================================
This forms an arithmetic series:
Total = 4 + 3 + 2 + 1 + 0
Total = (n-1) + (n-2) + (n-3) + ... + 2 + 1

Mathematical Derivation:
----------------------------------------
Let S = (n-1) + (n-2) + ... + 2 + 1
This is the sum of first (n-1) natural numbers

Using the arithmetic series formula:
Sum of 1 to k = k(k+1)/2

Therefore: S = (n-1)((n-1)+1)/2
           S = (n-1)(n)/2
           S = 10

Verification: 10 = 10 ✓

================================================================================

Analyzing Brute Force for array of size 10

Nested Loop Structure:
for i in range(n):          # Outer loop
    for j in range(i+1, n):  # Inner loop
        compare(arr[i], arr[j])

============================================================

Iterations breakdown:
i          j ranges from        Comparisons
---------------------------------------------
0          1 to 9               9
1          2 to 9               8
2          3 to 9               7
3          4 to 9               6
4          5 to 9               5
...        ...                  ...
9          (none)               0
---------------------------------------------
TOTAL                           45

============================================================
This forms an arithmetic series:
Total = 9 + 8 + 7 + 6 + 5 + ... + 0
Total = (n-1) + (n-2) + (n-3) + ... + 2 + 1

Mathematical Derivation:
----------------------------------------
Let S = (n-1) + (n-2) + ... + 2 + 1
This is the sum of first (n-1) natural numbers

Using the arithmetic series formula:
Sum of 1 to k = k(k+1)/2

Therefore: S = (n-1)((n-1)+1)/2
           S = (n-1)(n)/2
           S = 45

Verification: 45 = 45 ✓

================================================================================

Visualizing Loop Iterations as a Triangle

graph TD
    subgraph "Array Comparisons Form a Triangle"
        A["Element 0 compares with: 1,2,3,4 (4 comparisons)"]
        B["Element 1 compares with: 2,3,4 (3 comparisons)"]
        C["Element 2 compares with: 3,4 (2 comparisons)"]
        D["Element 3 compares with: 4 (1 comparison)"]
        E["Element 4 compares with: none (0 comparisons)"]
    end

    A --> F["Total: 4 + 3 + 2 + 1 = 10 comparisons"]
    B --> F
    C --> F
    D --> F
    E --> F

    F --> G["Formula: (n-1) × n ÷ 2<br/>= 4 × 5 ÷ 2 = 10"]

    style F fill:#fff9c4
    style G fill:#c8e6c9

Visualizing the Arithmetic Series

import matplotlib.pyplot as plt
import numpy as np

def visualize_arithmetic_series() -> None:
    """Visualize how the inner loop iterations form an arithmetic series"""

    fig, ((ax1, ax2), (ax3, ax4)) = plt.subplots(2, 2, figsize=(14, 10))

    # Subplot 1: Bar chart of iterations per outer loop value
    n = 10
    iterations = [n - i - 1 for i in range(n)]

    ax1.bar(range(n), iterations, color='steelblue', edgecolor='black')
    ax1.set_xlabel('Outer Loop Index (i)')
    ax1.set_ylabel('Inner Loop Iterations')
    ax1.set_title(f'Iterations per Outer Loop (n={n})')
    ax1.grid(True, alpha=0.3, axis='y')

    # Add values on bars
    for i, val in enumerate(iterations):
        ax1.text(i, val + 0.1, str(val), ha='center', va='bottom')

    # Subplot 2: Visual representation of the series sum
    ax2.barh(range(n), iterations, color='coral', edgecolor='black')
    ax2.set_ylabel('Outer Loop Index (i)')
    ax2.set_xlabel('Number of Comparisons')
    ax2.set_title('Visual Sum: (n-1) + (n-2) + ... + 1')
    ax2.invert_yaxis()

    # Add cumulative sum line
    cumsum = np.cumsum(iterations)
    ax2_twin = ax2.twiny()
    ax2_twin.plot(cumsum, range(n), 'g-o', linewidth=2, markersize=6)
    ax2_twin.set_xlabel('Cumulative Comparisons', color='g')
    ax2_twin.tick_params(axis='x', labelcolor='g')

    # Subplot 3: Compare actual vs formula for different n
    sizes = range(2, 21)
    actual_counts = []
    formula_counts = []

    for size in sizes:
        actual = sum(size - i - 1 for i in range(size))
        formula = (size - 1) * size // 2
        actual_counts.append(actual)
        formula_counts.append(formula)

    ax3.plot(sizes, actual_counts, 'bo-', label='Actual Count', markersize=8)
    ax3.plot(sizes, formula_counts, 'r--', label='Formula: n(n-1)/2', linewidth=2)
    ax3.set_xlabel('Array Size (n)')
    ax3.set_ylabel('Total Comparisons')
    ax3.set_title('Verification: Actual Count vs Formula')
    ax3.legend()
    ax3.grid(True, alpha=0.3)

    # Subplot 4: Growth comparison - n² vs n(n-1)/2
    sizes = np.array(range(1, 51))
    exact = sizes * (sizes - 1) / 2
    n_squared = sizes ** 2
    n_squared_half = sizes ** 2 / 2

    ax4.plot(sizes, exact, 'b-', label='Exact: n(n-1)/2', linewidth=2)
    ax4.plot(sizes, n_squared_half, 'g--', label='n²/2', linewidth=2)
    ax4.plot(sizes, n_squared, 'r:', label='n²', linewidth=2)
    ax4.set_xlabel('Array Size (n)')
    ax4.set_ylabel('Operations')
    ax4.set_title('Why We Say O(n²): Asymptotic Behavior')
    ax4.legend()
    ax4.grid(True, alpha=0.3)

    # Add annotation
    ax4.annotate('As n grows, n(n-1)/2 ≈ n²/2',
                xy=(35, 35*34/2), xytext=(25, 800),
                arrowprops=dict(arrowstyle='->', color='blue'),
                fontsize=11, color='blue')

    plt.tight_layout()
    plt.show()

visualize_arithmetic_series()

From Exact Count to Big-O Notation

def explain_big_o_simplification(n: int = 1000) -> None:
    """
    Explain why n(n-1)/2 simplifies to O(n²)
    """
    print("From Exact Formula to Big-O Notation\n")
    print("="*60)

    exact = n * (n - 1) // 2

    print(f"For n = {n:,}:")
    print(f"  Exact comparisons: n(n-1)/2 = {exact:,}")
    print(f"  Expanded: n²/2 - n/2 = {n**2//2:,} - {n//2:,}")
    print(f"  n² term: {n**2:,}")
    print(f"  n²/2 term: {n**2//2:,}")

    print(f"\nRatio Analysis:")
    print(f"  exact / n² = {exact / n**2:.4f}")
    print(f"  exact / (n²/2) = {exact / (n**2/2):.4f}")

    print("\n" + "="*60)
    print("Big-O Simplification Rules:")
    print("-"*40)
    print("1. Drop constants: n²/2 → n²")
    print("2. Drop lower-order terms: n² - n → n²")
    print("3. Focus on dominant term as n → ∞")

    print(f"\nTherefore: n(n-1)/2 = O(n²)")

    # Show percentage contribution of each term
    print("\n" + "="*60)
    print("Term Contribution Analysis:")
    print("-"*40)

    for size in [10, 100, 1000, 10000]:
        n_squared_term = size ** 2 / 2
        n_term = size / 2
        total = n_squared_term - n_term

        n2_percent = (n_squared_term / total) * 100 if total > 0 else 0
        n_percent = abs(n_term / total) * 100 if total > 0 else 0

        print(f"n = {size:,}:")
        print(f"  n²/2 contributes: {n2_percent:.2f}%")
        print(f"  n/2 contributes:  {n_percent:.2f}%")
        print(f"  As n increases, n² term dominates!\n")

explain_big_o_simplification()

From Exact Formula to Big-O Notation

============================================================
For n = 1,000:
  Exact comparisons: n(n-1)/2 = 499,500
  Expanded: n²/2 - n/2 = 500,000 - 500
  n² term: 1,000,000
  n²/2 term: 500,000

Ratio Analysis:
  exact / n² = 0.4995
  exact / (n²/2) = 0.9990

============================================================
Big-O Simplification Rules:
----------------------------------------
1. Drop constants: n²/2 → n²
2. Drop lower-order terms: n² - n → n²
3. Focus on dominant term as n → ∞

Therefore: n(n-1)/2 = O(n²)

============================================================
Term Contribution Analysis:
----------------------------------------
n = 10:
  n²/2 contributes: 111.11%
  n/2 contributes:  11.11%
  As n increases, n² term dominates!

n = 100:
  n²/2 contributes: 101.01%
  n/2 contributes:  1.01%
  As n increases, n² term dominates!

n = 1,000:
  n²/2 contributes: 100.10%
  n/2 contributes:  0.10%
  As n increases, n² term dominates!

n = 10,000:
  n²/2 contributes: 100.01%
  n/2 contributes:  0.01%
  As n increases, n² term dominates!

Complexity Analysis

ImportantBrute Force Performance - Complete Analysis

Exact Comparison Count: - First iteration (i=0): Compare with indices 1,2,…,n-1 = (n-1) comparisons - Second iteration (i=1): Compare with indices 2,3,…,n-1 = (n-2) comparisons - Third iteration (i=2): Compare with indices 3,4,…,n-1 = (n-3) comparisons - … - Last iteration (i=n-2): Compare with index n-1 = 1 comparison - Final iteration (i=n-1): No comparisons = 0 comparisons

Total: (n-1) + (n-2) + (n-3) + … + 2 + 1 + 0

Mathematical Derivation: \[\text{Total} = \sum_{i=1}^{n-1} i = \frac{(n-1) \cdot n}{2}\]

Simplification to Big-O: \[\frac{n(n-1)}{2} = \frac{n^2 - n}{2} = \frac{n^2}{2} - \frac{n}{2}\]

As n grows large: - The n²/2 term dominates - Constants are dropped in Big-O - Therefore: O(n²)

Space Complexity: O(1) - Only using constant extra space for counters

Performance Scaling

import matplotlib.pyplot as plt
import numpy as np

def visualize_brute_force_scaling() -> None:
    """Show how brute force performance degrades with array size"""

    sizes = [10, 20, 50, 100, 200, 500, 1000]
    comparisons = [(n * (n - 1)) // 2 for n in sizes]

    fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(12, 5))

    # Linear scale
    ax1.plot(sizes, comparisons, 'ro-', linewidth=2, markersize=8)
    ax1.set_xlabel('Array Size (n)')
    ax1.set_ylabel('Number of Comparisons')
    ax1.set_title('Brute Force: Quadratic Growth O(n²)')
    ax1.grid(True, alpha=0.3)

    # Add reference lines
    ax1.axhline(y=10000, color='orange', linestyle='--', alpha=0.5, label='10K ops')
    ax1.axhline(y=100000, color='red', linestyle='--', alpha=0.5, label='100K ops')
    ax1.legend()

    # Log scale
    ax2.loglog(sizes, comparisons, 'bo-', linewidth=2, markersize=8)
    ax2.loglog(sizes, [n**2 for n in sizes], 'g--', alpha=0.5, label='n² reference')
    ax2.set_xlabel('Array Size (n) - log scale')
    ax2.set_ylabel('Number of Comparisons - log scale')
    ax2.set_title('Brute Force: Log-Log View')
    ax2.grid(True, alpha=0.3)
    ax2.legend()

    plt.tight_layout()
    plt.show()

visualize_brute_force_scaling()

Quick Check

1. Array size 6, how many comparisons?

   • Answer: 15 comparisons (5 + 4 + 3 + 2 + 1) or (n-1) * n/2 = 5 * 6/2 = 15

2. Why does inner loop start at i+1?

   • Answer: To avoid double counting pairs and self-pairing (i.e., (a,b) and (b,a), or (a,a))

3. Double array size from 100 to 200, how many times more comparisons?

   • Answer: 4 times more comparisons. Since comparisons grow quadratically (O(n²)), doubling n results in roughly 4 times the comparisons.

4. Using Gauss’s formula for n=200, how many comparisons?

   • Answer: (n-1) * n/2 = (200-1) * 200/2 = 199 * 200/2 = 19900 comparisons

5. Why O(n²) instead of n(n-1)/2?

   • Answer: In Big-O notation, we drop constants and lower-order terms to focus on the dominant growth rate as n becomes large. Thus, n(n-1)/2 simplifies to O(n²).

Interlude: Understanding Hash Tables

What is a Hash Table?

Before diving into our optimized solution, let’s understand the powerful data structure that makes it possible.

NoteHash Table Definition

A hash table (also called hash map or dictionary) is a data structure that implements an associative array - a structure that can map keys to values. It uses a hash function to compute an index into an array of buckets or slots, from which the desired value can be found.

Figure: Hash Table Approaches (Chaining vs. Linear Probing)

Core Concepts

from typing import Any, Optional

# In Python, dictionaries are implemented as hash tables
example_hash_table: Dict[str, int] = {}  # Empty hash table

# Adding key-value pairs - O(1) average time
example_hash_table["apple"] = 5
example_hash_table["banana"] = 3
example_hash_table["orange"] = 7

# Accessing values - O(1) average time
print(f"Value for 'apple': {example_hash_table['apple']}")

# Checking existence - O(1) average time
print(f"Is 'banana' in table? {'banana' in example_hash_table}")
print(f"Is 'grape' in table? {'grape' in example_hash_table}")

# For our zero-sum problem, we'll use hash tables to count occurrences
frequency_map: Dict[int, int] = {}
numbers = [1, -1, 2, -2, 1, -1, 3]

for num in numbers:
    frequency_map[num] = frequency_map.get(num, 0) + 1

print(f"\nFrequency map: {frequency_map}")
print(f"Count of 1: {frequency_map.get(1, 0)}")
print(f"Count of -1: {frequency_map.get(-1, 0)}")

Value for 'apple': 5
Is 'banana' in table? True
Is 'grape' in table? False

Frequency map: {1: 2, -1: 2, 2: 1, -2: 1, 3: 1}
Count of 1: 2
Count of -1: 2

How Hash Tables Work

def demonstrate_hash_function() -> None:
    """Demonstrate how hash functions map keys to array indices"""

    print("Hash Function Example for Integers\n")

    # Simple hash function for demonstration
    def simple_hash(key: int, table_size: int = 10) -> int:
        """A simple hash function for integers"""
        return abs(key) % table_size

    # Create a simple hash table representation
    table_size = 10
    hash_table: List[Optional[Tuple[int, int]]] = [None] * table_size

    numbers = [5, -5, 12, -12, 3, -3, 20, -20, 7, -7, 0, 4]

    print(f"Table size: {table_size} buckets\n")
    print("Hashing integers (for counting occurrences):")
    print("-" * 50)

    for num in numbers:
        index = simple_hash(num, table_size)
        print(f"Number: {num:3} → Hash index: {index}")

    print("\n" + "=" * 50)
    print("Important for Zero-Sum pairs:")
    print("- We need to quickly check if -x exists for each x")
    print("- Hash table gives us O(1) lookup time")
    print("- Perfect for counting pairs efficiently!")

demonstrate_hash_function()

Hash Function Example for Integers

Table size: 10 buckets

Hashing integers (for counting occurrences):
--------------------------------------------------
Number:   5 → Hash index: 5
Number:  -5 → Hash index: 5
Number:  12 → Hash index: 2
Number: -12 → Hash index: 2
Number:   3 → Hash index: 3
Number:  -3 → Hash index: 3
Number:  20 → Hash index: 0
Number: -20 → Hash index: 0
Number:   7 → Hash index: 7
Number:  -7 → Hash index: 7
Number:   0 → Hash index: 0
Number:   4 → Hash index: 4

==================================================
Important for Zero-Sum pairs:
- We need to quickly check if -x exists for each x
- Hash table gives us O(1) lookup time
- Perfect for counting pairs efficiently!

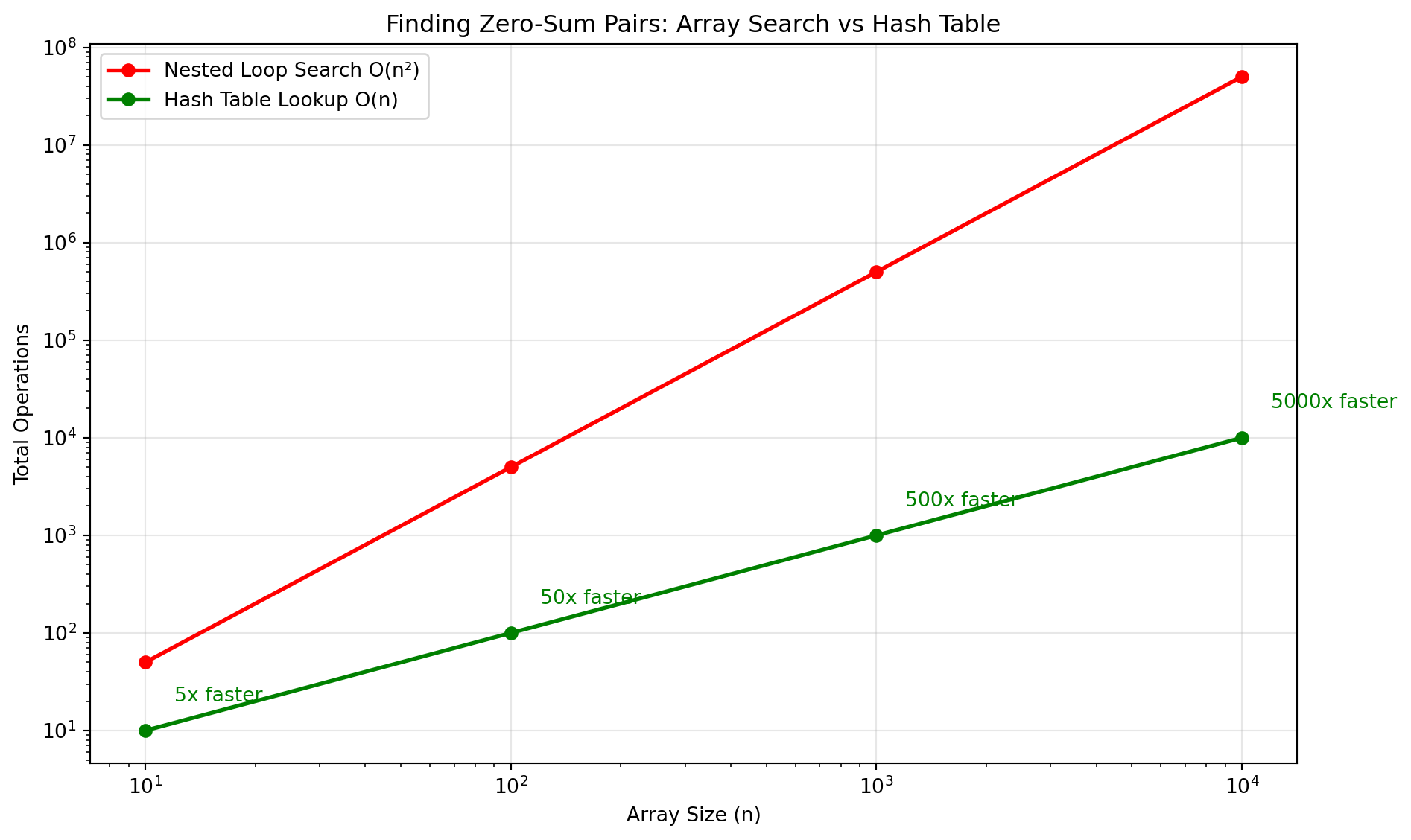

Why Hash Tables are Fast for Zero-Sum

import matplotlib.pyplot as plt
import numpy as np

def visualize_lookup_comparison() -> None:
    """Compare array search vs hash table lookup for finding pairs"""

    fig, ax = plt.subplots(1, 1, figsize=(10, 6))

    sizes = np.array([10, 100, 1000, 10000])

    # For each element, searching for its negative
    array_search = sizes * sizes / 2  # O(n²) total
    hash_search = sizes  # O(n) total

    ax.loglog(sizes, array_search, 'r-o', label='Nested Loop Search O(n²)', linewidth=2)
    ax.loglog(sizes, hash_search, 'g-o', label='Hash Table Lookup O(n)', linewidth=2)

    # Add speedup annotations
    for i, size in enumerate(sizes):
        speedup = array_search[i] / hash_search[i]
        ax.annotate(f'{speedup:.0f}x faster',
                   xy=(size, hash_search[i]),
                   xytext=(size*1.2, hash_search[i]*2),
                   fontsize=10, color='green')

    ax.set_xlabel('Array Size (n)')
    ax.set_ylabel('Total Operations')
    ax.set_title('Finding Zero-Sum Pairs: Array Search vs Hash Table')
    ax.legend()
    ax.grid(True, alpha=0.3)

    plt.tight_layout()
    plt.show()

visualize_lookup_comparison()

Key Advantages for Zero-Sum Counting

TipWhy Hash Tables Excel at Zero-Sum Pairs

1. Instant Complement Check: For each number x, check if -x exists in O(1)
2. Frequency Counting: Track how many times each number appears
3. Handle Duplicates: Count multiple occurrences efficiently
4. Single Pass Possible: Can solve in one iteration through array

Compare finding pairs:

• Brute force: Check all n(n-1)/2 pairs → O(n²)
• Hash table: Check each element once → O(n)

Quick Check

1. Average time complexity for hash table lookup?
   • Answer: O(1) - constant time. This is possible because the hash function directly computes the memory location, no searching needed.
2. Example of hash collision:
   • Answer: If our hash function is (number % 10), then 15 and 25 would both hash to 5, causing a collision.
3. Memory for 1000 items vs 3 variables:
   • Answer: Roughly 333x more memory. Hash table needs to store both keys and values, plus overhead for the data structure itself.
4. What to store for zero-sum problem?
   • Answer: Store each unique number as key and its frequency (count) as value. Example: {2: 3, -2: 2} means we have three 2s and two -2s.
5. Why is checking “-x exists” fast in hash table but slow in array?
   • Answer: Hash table: O(1) direct lookup. Array: O(n) must scan through all elements sequentially to find if -x exists.

Approach 2: Hash Table Solution

The Optimized Approach

Using a hash table to count occurrences and find pairs efficiently.

from typing import List, Tuple, Dict

def two_sum_hash_table(arr: List[int]) -> Tuple[int, int]:
    """
    Count pairs that sum to exactly 0 using hash table

    Args:
        arr: List of integers

    Returns:
        Tuple of (count of zero-sum pairs, number of lookups made)

    Time Complexity: O(n)
    Space Complexity: O(n)
    """
    frequency: Dict[int, int] = {}
    lookups = 0

    # First pass: count frequencies
    for num in arr:
        frequency[num] = frequency.get(num, 0) + 1
        lookups += 1

    count = 0
    processed: set = set()

    # Second pass: count pairs
    for num in frequency:
        lookups += 1

        if num in processed:
            continue

        if num == 0:
            # Special case: pairs of zeros
            # Choose 2 from frequency[0] zeros: C(n,2) = n*(n-1)/2
            zeros = frequency[0]
            count += (zeros * (zeros - 1)) // 2
        elif -num in frequency:
            # Regular case: positive-negative pairs
            # Each positive can pair with each negative
            count += frequency[num] * frequency[-num]
            processed.add(num)
            processed.add(-num)

    return count, lookups

# Test the hash table solution
test_arrays = [
    [1, -1, 2, -2, 3],
    [0, 0, 0],
    [5, -5, 10, -10, 5, -5],
    [1, 2, 3, 4, 5]
]

print("Hash Table Approach Results:")
print("-" * 50)
for arr in test_arrays:
    result, lookups = two_sum_hash_table(arr)
    print(f"Array: {arr}")
    print(f"  Zero-sum pairs: {result}")
    print(f"  Hash operations: {lookups}")
    print()

Hash Table Approach Results:
--------------------------------------------------
Array: [1, -1, 2, -2, 3]
  Zero-sum pairs: 2
  Hash operations: 10

Array: [0, 0, 0]
  Zero-sum pairs: 3
  Hash operations: 4

Array: [5, -5, 10, -10, 5, -5]
  Zero-sum pairs: 5
  Hash operations: 10

Array: [1, 2, 3, 4, 5]
  Zero-sum pairs: 0
  Hash operations: 10

Step-by-Step Visualization

def demonstrate_hash_table_counting(arr: List[int]) -> None:
    """Visualize how hash table approach counts zero-sum pairs"""

    print("Hash Table Approach - Step by Step\n")
    print(f"Input array: {arr}\n")

    # Step 1: Build frequency map
    print("STEP 1: Build Frequency Map")
    print("-" * 40)

    frequency: Dict[int, int] = {}
    for i, num in enumerate(arr):
        frequency[num] = frequency.get(num, 0) + 1
        print(f"  Process arr[{i}] = {num:3} → frequency = {dict(frequency)}")

    print(f"\nFinal frequency map: {frequency}\n")

    # Step 2: Count pairs
    print("STEP 2: Count Zero-Sum Pairs")
    print("-" * 40)

    count = 0
    processed: set = set()

    for num in sorted(frequency.keys()):
        if num in processed:
            continue

        print(f"\nChecking number: {num}")

        if num == 0:
            zeros = frequency[0]
            pairs_from_zeros = (zeros * (zeros - 1)) // 2
            print(f"  Special case: {zeros} zeros")
            print(f"  Can form C({zeros},2) = {pairs_from_zeros} pairs")
            count += pairs_from_zeros
        elif -num in frequency:
            pairs = frequency[num] * frequency[-num]
            print(f"  Found complement: {-num}")
            print(f"  {frequency[num]} instances of {num} × {frequency[-num]} instances of {-num}")
            print(f"  Forms {pairs} pairs")
            count += pairs
            processed.add(num)
            processed.add(-num)
        else:
            print(f"  No complement ({-num}) found")

    print("\n" + "=" * 40)
    print(f"TOTAL ZERO-SUM PAIRS: {count}")

# Demonstrate with examples
demo_arrays = [
    [1, -1, 2, -2, 1, -1],
    [0, 0, 0, 1, -1],
    [5, -5, 5, -5, 10]
]

for arr in demo_arrays:
    demonstrate_hash_table_counting(arr)
    print("\n" + "=" * 60 + "\n")

Hash Table Approach - Step by Step

Input array: [1, -1, 2, -2, 1, -1]

STEP 1: Build Frequency Map
----------------------------------------
  Process arr[0] =   1 → frequency = {1: 1}
  Process arr[1] =  -1 → frequency = {1: 1, -1: 1}
  Process arr[2] =   2 → frequency = {1: 1, -1: 1, 2: 1}
  Process arr[3] =  -2 → frequency = {1: 1, -1: 1, 2: 1, -2: 1}
  Process arr[4] =   1 → frequency = {1: 2, -1: 1, 2: 1, -2: 1}
  Process arr[5] =  -1 → frequency = {1: 2, -1: 2, 2: 1, -2: 1}

Final frequency map: {1: 2, -1: 2, 2: 1, -2: 1}

STEP 2: Count Zero-Sum Pairs
----------------------------------------

Checking number: -2
  Found complement: 2
  1 instances of -2 × 1 instances of 2
  Forms 1 pairs

Checking number: -1
  Found complement: 1
  2 instances of -1 × 2 instances of 1
  Forms 4 pairs

========================================
TOTAL ZERO-SUM PAIRS: 5

============================================================

Hash Table Approach - Step by Step

Input array: [0, 0, 0, 1, -1]

STEP 1: Build Frequency Map
----------------------------------------
  Process arr[0] =   0 → frequency = {0: 1}
  Process arr[1] =   0 → frequency = {0: 2}
  Process arr[2] =   0 → frequency = {0: 3}
  Process arr[3] =   1 → frequency = {0: 3, 1: 1}
  Process arr[4] =  -1 → frequency = {0: 3, 1: 1, -1: 1}

Final frequency map: {0: 3, 1: 1, -1: 1}

STEP 2: Count Zero-Sum Pairs
----------------------------------------

Checking number: -1
  Found complement: 1
  1 instances of -1 × 1 instances of 1
  Forms 1 pairs

Checking number: 0
  Special case: 3 zeros
  Can form C(3,2) = 3 pairs

========================================
TOTAL ZERO-SUM PAIRS: 4

============================================================

Hash Table Approach - Step by Step

Input array: [5, -5, 5, -5, 10]

STEP 1: Build Frequency Map
----------------------------------------
  Process arr[0] =   5 → frequency = {5: 1}
  Process arr[1] =  -5 → frequency = {5: 1, -5: 1}
  Process arr[2] =   5 → frequency = {5: 2, -5: 1}
  Process arr[3] =  -5 → frequency = {5: 2, -5: 2}
  Process arr[4] =  10 → frequency = {5: 2, -5: 2, 10: 1}

Final frequency map: {5: 2, -5: 2, 10: 1}

STEP 2: Count Zero-Sum Pairs
----------------------------------------

Checking number: -5
  Found complement: 5
  2 instances of -5 × 2 instances of 5
  Forms 4 pairs

Checking number: 10
  No complement (-10) found

========================================
TOTAL ZERO-SUM PAIRS: 4

============================================================

Handling Edge Cases

def two_sum_hash_table_detailed(arr: List[int]) -> int:
    """
    Enhanced version with edge case handling

    Time Complexity: O(n)
    Space Complexity: O(n)
    """
    if not arr or len(arr) < 2:
        return 0

    frequency: Dict[int, int] = {}

    # Count frequencies
    for num in arr:
        frequency[num] = frequency.get(num, 0) + 1

    count = 0

    # Handle zeros separately (pairs within same value)
    if 0 in frequency:
        zeros = frequency[0]
        count += (zeros * (zeros - 1)) // 2

    # Handle positive-negative pairs
    seen: set = set()
    for num in frequency:
        if num > 0 and -num in frequency and num not in seen:
            count += frequency[num] * frequency[-num]
            seen.add(num)
            seen.add(-num)

    return count

# Test edge cases
edge_cases = [
    [],                    # Empty array
    [1],                   # Single element
    [0, 0, 0, 0],         # All zeros
    [1, 1, 1, 1],         # All same (non-zero)
    [1, -2, 3, -4, 5],    # No pairs
    [100, -100] * 50      # Many duplicates
]

print("Edge Case Testing:")
print("-" * 50)
for arr in edge_cases:
    result = two_sum_hash_table_detailed(arr)
    display_arr = arr if len(arr) <= 10 else f"{arr[:5]} ... {arr[-5:]}"
    print(f"Array: {display_arr}")
    print(f"  Zero-sum pairs: {result}\n")

Edge Case Testing:
--------------------------------------------------
Array: []
  Zero-sum pairs: 0

Array: [1]
  Zero-sum pairs: 0

Array: [0, 0, 0, 0]
  Zero-sum pairs: 6

Array: [1, 1, 1, 1]
  Zero-sum pairs: 0

Array: [1, -2, 3, -4, 5]
  Zero-sum pairs: 0

Array: [100, -100, 100, -100, 100] ... [-100, 100, -100, 100, -100]
  Zero-sum pairs: 2500

Quick Check

1. Main tradeoff between brute force and hash table?
   • Answer: Time vs Space. Brute force uses O(1) space but O(n²) time. Hash table uses O(n) space but only O(n) time.
2. Single pass hash table possible?
   • Answer: Yes! As we iterate, check if -current exists in map, count pairs, then add current to map. But the two-pass version is clearer and handles duplicates more easily.

Approach 3: Sorted Array with Two Pointers

Alternative Approach for Sorted Data

If we can sort the array, we can use two pointers to find pairs efficiently.

from typing import List, Tuple

def two_sum_two_pointer(arr: List[int]) -> Tuple[int, int]:
    """
    Count pairs that sum to exactly 0 using two pointers

    Args:
        arr: List of integers

    Returns:
        Tuple of (count of zero-sum pairs, number of comparisons)

    Time Complexity: O(n log n) due to sorting
    Space Complexity: O(1) excluding sort space
    """
    if len(arr) < 2:
        return 0, 0

    # Sort the array
    sorted_arr = sorted(arr)
    n = len(sorted_arr)

    left = 0
    right = n - 1
    count = 0
    comparisons = 0

    while left < right:
        comparisons += 1
        current_sum = sorted_arr[left] + sorted_arr[right]

        if current_sum == 0:
            # Found a zero-sum pair
            # Count duplicates on both sides
            left_val = sorted_arr[left]
            right_val = sorted_arr[right]

            if left_val == right_val:
                # Special case: all remaining elements are the same (zeros)
                remaining = right - left + 1
                count += (remaining * (remaining - 1)) // 2
                break

            # Count duplicates
            left_count = 1
            right_count = 1

            # Count duplicates on the left
            while left + left_count < right and sorted_arr[left + left_count] == left_val:
                left_count += 1

            # Count duplicates on the right
            while right - right_count > left and sorted_arr[right - right_count] == right_val:
                right_count += 1

            # Each left element pairs with each right element
            count += left_count * right_count

            # Move pointers past duplicates
            left += left_count
            right -= right_count

        elif current_sum < 0:
            left += 1
        else:
            right -= 1

    return count, comparisons

# Test the two-pointer solution
test_arrays = [
    [1, -1, 2, -2, 3],
    [0, 0, 0],
    [5, -5, 10, -10, 5, -5],
    [1, 2, 3, 4, 5]
]

print("Two-Pointer Approach Results:")
print("-" * 50)
for arr in test_arrays:
    result, comps = two_sum_two_pointer(arr)
    print(f"Array: {arr}")
    print(f"  Sorted: {sorted(arr)}")
    print(f"  Zero-sum pairs: {result}")
    print(f"  Comparisons: {comps}")
    print()

Two-Pointer Approach Results:
--------------------------------------------------
Array: [1, -1, 2, -2, 3]
  Sorted: [-2, -1, 1, 2, 3]
  Zero-sum pairs: 2
  Comparisons: 3

Array: [0, 0, 0]
  Sorted: [0, 0, 0]
  Zero-sum pairs: 3
  Comparisons: 1

Array: [5, -5, 10, -10, 5, -5]
  Sorted: [-10, -5, -5, 5, 5, 10]
  Zero-sum pairs: 5
  Comparisons: 2

Array: [1, 2, 3, 4, 5]
  Sorted: [1, 2, 3, 4, 5]
  Zero-sum pairs: 0
  Comparisons: 4

Visualizing Two-Pointer Movement

def visualize_two_pointer_process(arr: List[int]) -> None:
    """Visualize how two pointers find zero-sum pairs"""

    sorted_arr = sorted(arr)
    n = len(sorted_arr)

    print("Two-Pointer Technique Visualization\n")
    print(f"Original: {arr}")
    print(f"Sorted:   {sorted_arr}\n")

    left = 0
    right = n - 1
    step = 1
    total_pairs = 0

    while left < right:
        # Visual representation
        visual = [' ' * 4] * n
        visual[left] = ' L  '
        visual[right] = '  R '

        print(f"Step {step}:")
        print("  " + "".join(f"[{num:3}]" for num in sorted_arr))
        print("  " + "".join(visual))

        current_sum = sorted_arr[left] + sorted_arr[right]
        print(f"  Sum: {sorted_arr[left]:3} + {sorted_arr[right]:3} = {current_sum:3}", end=" ")

        if current_sum == 0:
            # Count duplicates for accurate pair counting
            left_val, right_val = sorted_arr[left], sorted_arr[right]
            left_count = 1
            right_count = 1

            while left + left_count < right and sorted_arr[left + left_count] == left_val:
                left_count += 1
            while right - right_count > left and sorted_arr[right - right_count] == right_val:
                right_count += 1

            pairs = left_count * right_count
            total_pairs += pairs
            print(f"Found {pairs} pair(s)!")

            left += left_count
            right -= right_count
        elif current_sum < 0:
            print("→ Move left pointer")
            left += 1
        else:
            print("← Move right pointer")
            right -= 1

        step += 1
        print()

    print(f"Total zero-sum pairs found: {total_pairs}")

# Demonstrate with example
demo_arr = [3, -3, 1, -1, 2, -2, 0, 0]
visualize_two_pointer_process(demo_arr)

Two-Pointer Technique Visualization

Original: [3, -3, 1, -1, 2, -2, 0, 0]
Sorted:   [-3, -2, -1, 0, 0, 1, 2, 3]

Step 1:
  [ -3][ -2][ -1][  0][  0][  1][  2][  3]
   L                            R
  Sum:  -3 +   3 =   0 Found 1 pair(s)!

Step 2:
  [ -3][ -2][ -1][  0][  0][  1][  2][  3]
       L                    R
  Sum:  -2 +   2 =   0 Found 1 pair(s)!

Step 3:
  [ -3][ -2][ -1][  0][  0][  1][  2][  3]
           L            R
  Sum:  -1 +   1 =   0 Found 1 pair(s)!

Step 4:
  [ -3][ -2][ -1][  0][  0][  1][  2][  3]
               L    R
  Sum:   0 +   0 =   0 Found 1 pair(s)!

Total zero-sum pairs found: 4

Quick Check

1. Why must array be sorted?
   • Answer: The algorithm relies on the property that if sum is too small, we need a larger number (move left pointer right), and if sum is too large, we need a smaller number (move right pointer left). This only works with sorted order.
2. Time complexity of sorting?
   • Answer: O(n log n) for efficient sorting algorithms. This dominates the O(n) scanning phase, so overall complexity is O(n log n).

Performance Comparison

Empirical Benchmarking

import time
import random
from typing import List, Dict, Tuple

def generate_test_array(size: int, zero_pairs_ratio: float = 0.3) -> List[int]:
    """Generate test array with controlled number of zero-sum pairs"""
    arr = []
    pairs_count = int(size * zero_pairs_ratio / 2)

    # Add pairs that sum to zero
    for i in range(pairs_count):
        val = random.randint(1, 100)
        arr.extend([val, -val])

    # Add random numbers (unlikely to form pairs)
    remaining = size - len(arr)
    arr.extend(random.randint(101, 200) for _ in range(remaining))

    random.shuffle(arr)
    return arr

def benchmark_solutions(sizes: List[int] = [10, 50, 100, 500, 1000, 2000]) -> Tuple[List[int], Dict]:
    """Compare performance of all three approaches"""
    results = {
        'brute_force': {'times': [], 'operations': []},
        'hash_table': {'times': [], 'operations': []},
        'two_pointer': {'times': [], 'operations': []}
    }

    for size in sizes:
        arr = generate_test_array(size)

        # Benchmark brute force
        start = time.perf_counter()
        count, ops = two_sum_brute_force(arr)
        results['brute_force']['times'].append(time.perf_counter() - start)
        results['brute_force']['operations'].append(ops)

        # Benchmark hash table
        start = time.perf_counter()
        count, ops = two_sum_hash_table(arr)
        results['hash_table']['times'].append(time.perf_counter() - start)
        results['hash_table']['operations'].append(ops)

        # Benchmark two-pointer
        start = time.perf_counter()
        count, ops = two_sum_two_pointer(arr)
        results['two_pointer']['times'].append(time.perf_counter() - start)
        results['two_pointer']['operations'].append(ops)

    return sizes, results

# Run benchmarks
sizes, results = benchmark_solutions()

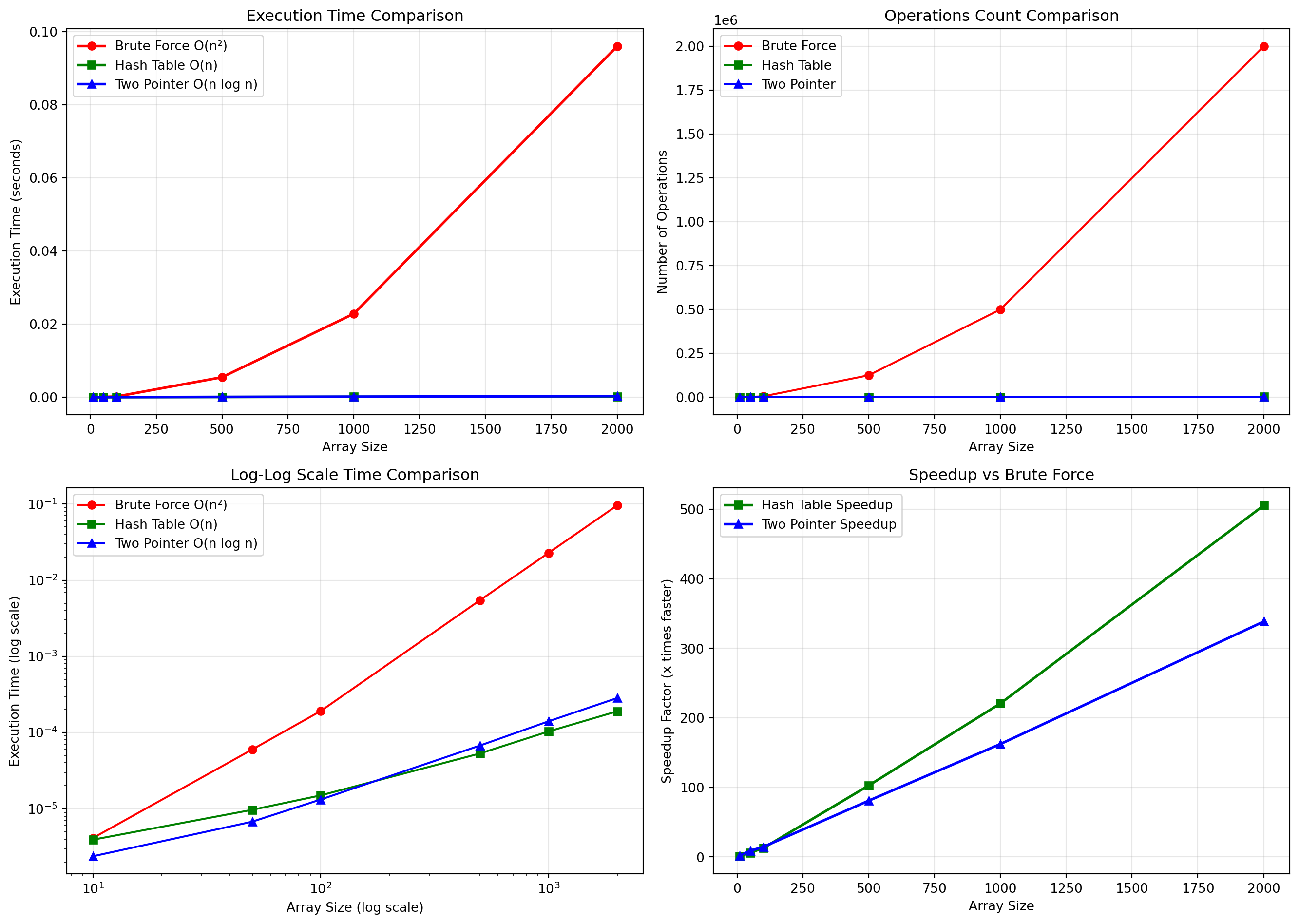

# Visualize results
fig, ((ax1, ax2), (ax3, ax4)) = plt.subplots(2, 2, figsize=(14, 10))

# Execution time comparison
ax1.plot(sizes, results['brute_force']['times'], 'r-o', label='Brute Force O(n²)', linewidth=2)
ax1.plot(sizes, results['hash_table']['times'], 'g-s', label='Hash Table O(n)', linewidth=2)
ax1.plot(sizes, results['two_pointer']['times'], 'b-^', label='Two Pointer O(n log n)', linewidth=2)
ax1.set_xlabel('Array Size')
ax1.set_ylabel('Execution Time (seconds)')
ax1.set_title('Execution Time Comparison')
ax1.legend()
ax1.grid(True, alpha=0.3)

# Operations count comparison
ax2.plot(sizes, results['brute_force']['operations'], 'r-o', label='Brute Force')
ax2.plot(sizes, results['hash_table']['operations'], 'g-s', label='Hash Table')
ax2.plot(sizes, results['two_pointer']['operations'], 'b-^', label='Two Pointer')
ax2.set_xlabel('Array Size')
ax2.set_ylabel('Number of Operations')
ax2.set_title('Operations Count Comparison')
ax2.legend()
ax2.grid(True, alpha=0.3)

# Log scale comparison
ax3.loglog(sizes, results['brute_force']['times'], 'r-o', label='Brute Force O(n²)')
ax3.loglog(sizes, results['hash_table']['times'], 'g-s', label='Hash Table O(n)')
ax3.loglog(sizes, results['two_pointer']['times'], 'b-^', label='Two Pointer O(n log n)')
ax3.set_xlabel('Array Size (log scale)')
ax3.set_ylabel('Execution Time (log scale)')
ax3.set_title('Log-Log Scale Time Comparison')
ax3.legend()
ax3.grid(True, alpha=0.3)

# Speedup factors
speedup_hash = [bf/ht if ht > 0 else float('inf')
                for bf, ht in zip(results['brute_force']['times'],
                                 results['hash_table']['times'])]
speedup_pointer = [bf/tp if tp > 0 else float('inf')
                  for bf, tp in zip(results['brute_force']['times'],
                                   results['two_pointer']['times'])]

ax4.plot(sizes, speedup_hash, 'g-s', label='Hash Table Speedup', linewidth=2)
ax4.plot(sizes, speedup_pointer, 'b-^', label='Two Pointer Speedup', linewidth=2)
ax4.set_xlabel('Array Size')
ax4.set_ylabel('Speedup Factor (x times faster)')
ax4.set_title('Speedup vs Brute Force')
ax4.legend()
ax4.grid(True, alpha=0.3)

plt.tight_layout()
plt.show()

# Print speedup summary
print("\nSpeedup Summary (vs Brute Force):")
print("-" * 50)
print(f"{'Size':<10} {'Hash Table':<15} {'Two Pointer':<15}")
print("-" * 50)
for i, size in enumerate(sizes):
    print(f"{size:<10} {speedup_hash[i]:<15.1f}x {speedup_pointer[i]:<15.1f}x")

Speedup Summary (vs Brute Force):
--------------------------------------------------
Size       Hash Table      Two Pointer
--------------------------------------------------
10         1.1            x 1.7            x
50         6.2            x 8.9            x
100        12.8           x 14.5           x
500        102.8          x 80.9           x
1000       220.8          x 162.4          x
2000       505.7          x 338.6          x

Expected Performance Improvements

Theoretical Analysis

Based on complexity analysis, here’s what to expect:

Array Size	Brute Force O(n²)	Hash Table O(n)	Two Pointer O(n log n)	Hash Speedup	Pointer Speedup
100	4,950 ops	200 ops	~664 ops	24.8x	7.5x
1,000	499,500 ops	2,000 ops	~9,966 ops	249.8x	50.1x
10,000	49,995,000 ops	20,000 ops	~132,877 ops	2,500x	376x
100,000	~5 billion ops	200,000 ops	~1.66M ops	25,000x	3,010x

Memory Considerations

from typing import List
import sys

def analyze_memory_usage(n: int) -> None:
    """Analyze memory usage for different approaches"""

    print(f"Memory Analysis for Array Size = {n:,}")
    print("=" * 50)

    # Brute force: O(1) extra space
    brute_force_extra = sys.getsizeof(0) * 3  # Just counters
    print(f"Brute Force:  {brute_force_extra:,} bytes extra")

    # Hash table: O(n) extra space
    # Worst case: all unique elements
    hash_table_extra = sys.getsizeof({}) + n * (sys.getsizeof(1) + sys.getsizeof(1))
    print(f"Hash Table:   ~{hash_table_extra:,} bytes extra")

    # Two pointer: O(n) for sorted copy (in Python)
    two_pointer_extra = n * sys.getsizeof(1)
    print(f"Two Pointer:  ~{two_pointer_extra:,} bytes extra (sorted copy)")

    print("\nSpace-Time Tradeoff:")
    print(f"  Hash Table uses {hash_table_extra // brute_force_extra:.0f}x more memory")
    print(f"  But runs {n/2:.0f}x to {n:.0f}x faster!")

analyze_memory_usage(1000)

Memory Analysis for Array Size = 1,000
==================================================
Brute Force:  84 bytes extra
Hash Table:   ~56,064 bytes extra
Two Pointer:  ~28,000 bytes extra (sorted copy)

Space-Time Tradeoff:
  Hash Table uses 667x more memory
  But runs 500x to 1000x faster!

Algorithm Selection Guide

How do I choose?

TipWhen to Use Each Approach

Use Brute Force when:

• Array is very small (n < 50)
• Memory is extremely limited
• Simplicity is more important than speed
• Teaching/demonstrating the problem

Use Hash Table when:

• Optimal time complexity is required
• Array is unsorted and large
• Memory usage is not a concern
• Need to handle duplicates efficiently

Use Two Pointer when:

• Array is already sorted
• Want balance between time and space
• Processing streaming/online data (can maintain sorted structure)
• Working with primitive types in low-level languages

Quick Check

1. Memory-limited, n=10,000, which approach?
   • Answer: Two-pointer (if we can afford sorting). Uses O(1) extra space vs hash table’s O(n). If we can’t sort in-place, then brute force despite being slow.
2. Why might two-pointer beat hash table for small arrays?
   • Answer: Less overhead. Sorting small arrays is very fast, and two-pointer has no hash function overhead or hash table creation cost.
3. 1 million transactions, which approach?
   • Answer: Hash table. O(n) = 1 million operations vs O(n²) = 1 trillion operations for brute force. The memory for 1 million integers (~4-8MB) is acceptable on modern systems.
4. Modify for triplets?
   • Answer: This is your homework!

Key Takeaways

1. Algorithm Choice Matters: O(n²) vs O(n) makes a massive difference at scale
2. Hash Tables are Powerful: Trading space for time often yields huge speedups
3. Understand Your Data: Sorted data enables different optimizations
4. Handle Edge Cases: Zeros and duplicates need special attention
5. Profile Before Optimizing: Measure actual performance, not just complexity

Further Reading

• Hash Table Deep Dive
• Two Pointer Technique Patterns
• Counting Problems in Competitive Programming
• Python’s Dictionary Implementation
