Workshop 4

2D Games with Dynamic Platforms

Author

Affiliation

Lucas P. Cordova, Ph.D.

Willamette University

Abstract

In this workshop, we will continue to iterate on a snowboarding game to explore other features of 2D game development.

Workshop Overview

1. Sprite Shapes
2. Moving Platforms & Moving Cameras
3. Edge Colliders
4. Surface Effector
5. Player Rotation and Rotation Speed
6. Using Invoke() for Delays
7. Physics
8. Timers
9. Activating Powerups
10. Anchors & Pivots
11. Coroutines
12. Events

Game Mechanics

1. Player moving along track
2. Rotate forwards and backwards (flips)
3. Ability to speed up
4. Particle events for touching the ground
5. Crash detection system that restarts the level
6. Finish line that restarts the level
7. Scoring system to gain score when flipping
8. Powerups the player can pick up
9. Character selection screen

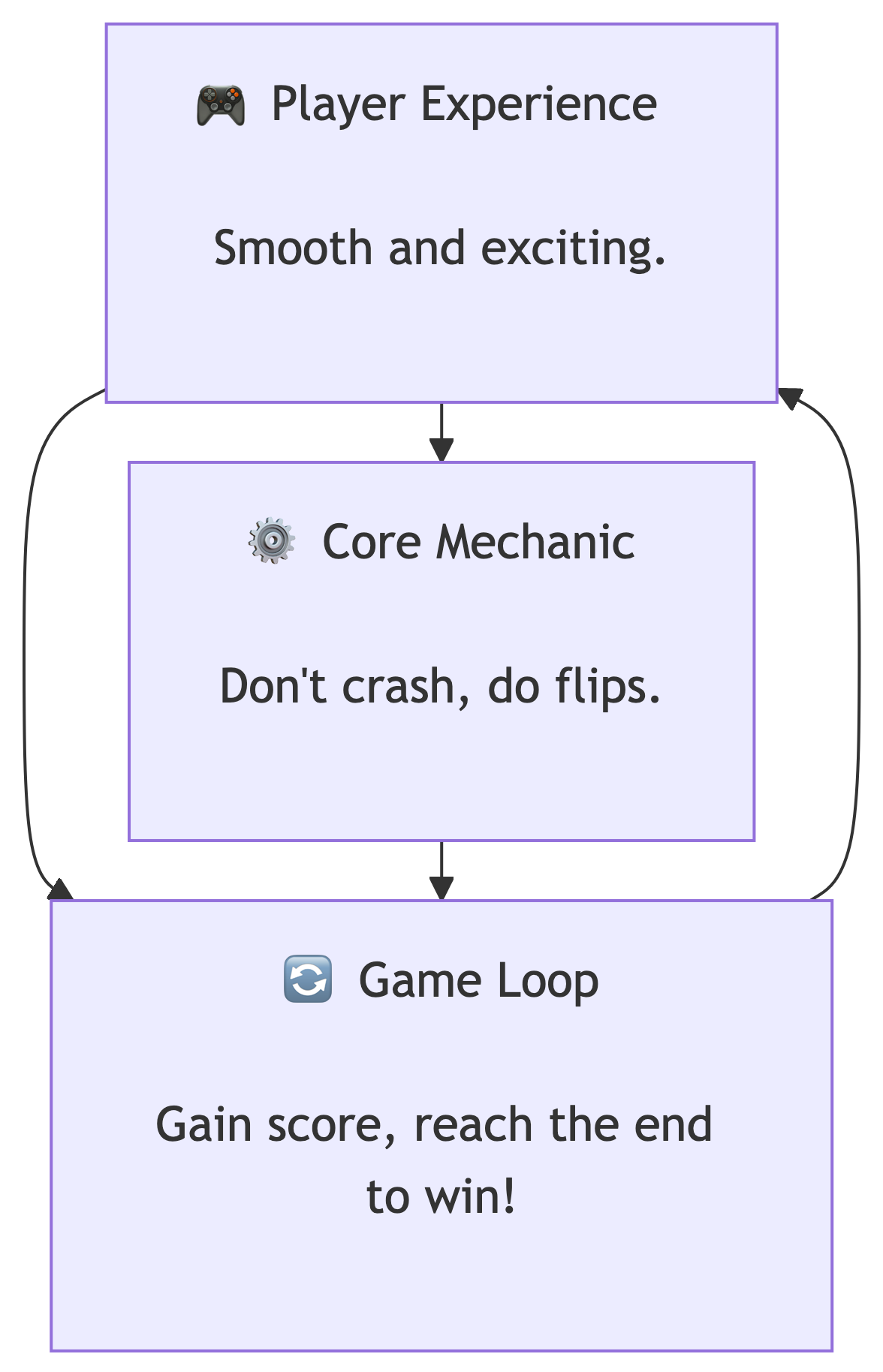

Game Design Requirements

Part 1

Follow-Along Parameters Step 1

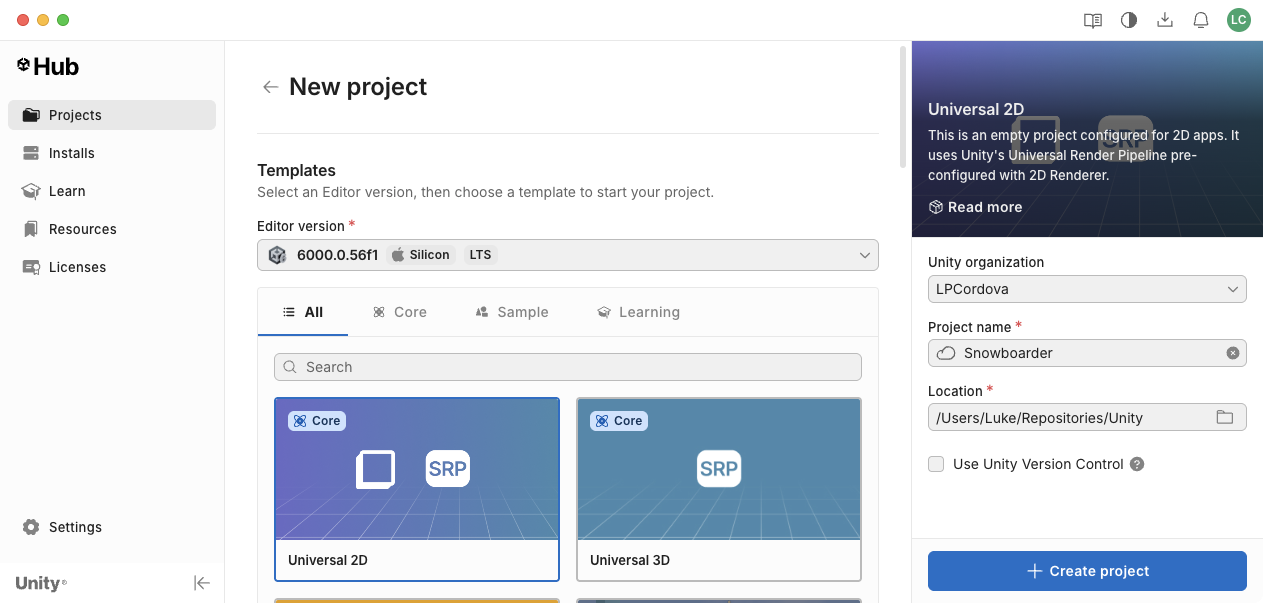

Create a new 2D Unity project called Snowboarder

New Project Dialog

Follow-Along Parameters Step 2

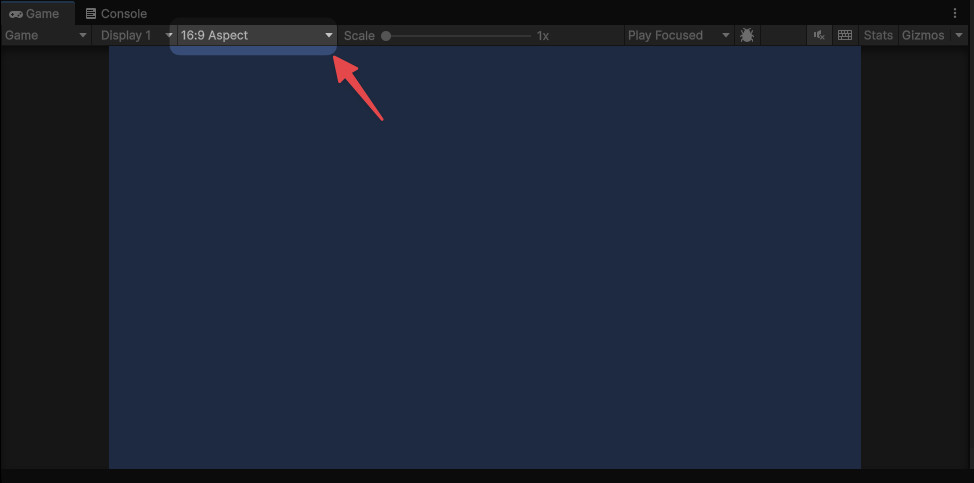

Set the Game display to 16:9 in the Display section of the Player Settings.

Player Settings

Follow-Along Parameters Step 3

Create a new folder in the Project window under Assets called Snow and import the images from the ZIP located in Canvas.

Copy Assets

Follow-Along Parameters Step 4

Select and configure both the Floor Tile Fill and Floor Tile assets that you added to a Full Rect mesh type and a Repeat wrap mode and click the Apply button.

Configure Assets

Sprite Shapes

Open shapes

Open shapes

• Open shapes are shapes that are not closed, like a circle or an ellipse.
• Useful for creating objects that can move through each other, like a player or a projectile.

Closed shapes

Closed shapes

• Closed shapes are shapes that are closed, like a square or a rectangle.
• Useful for creating objects that cannot move through each other, like a wall or a platform.

Add a Closed Shape Sprite to the Scene

1. Right-click in the hierarchy panel
2. Select 2D Object -> Sprite Shape -> Closed Shape
3. Rename the Game Object to Level Sprite Shape

Level Sprite Shape

Sprite Shape Controllers

• Found in the inspector for the sprite shape
• Control things like:
  • Shape options based on points called Splines
  • Rendering options
  • Geometry options

Sprite Shape Controller

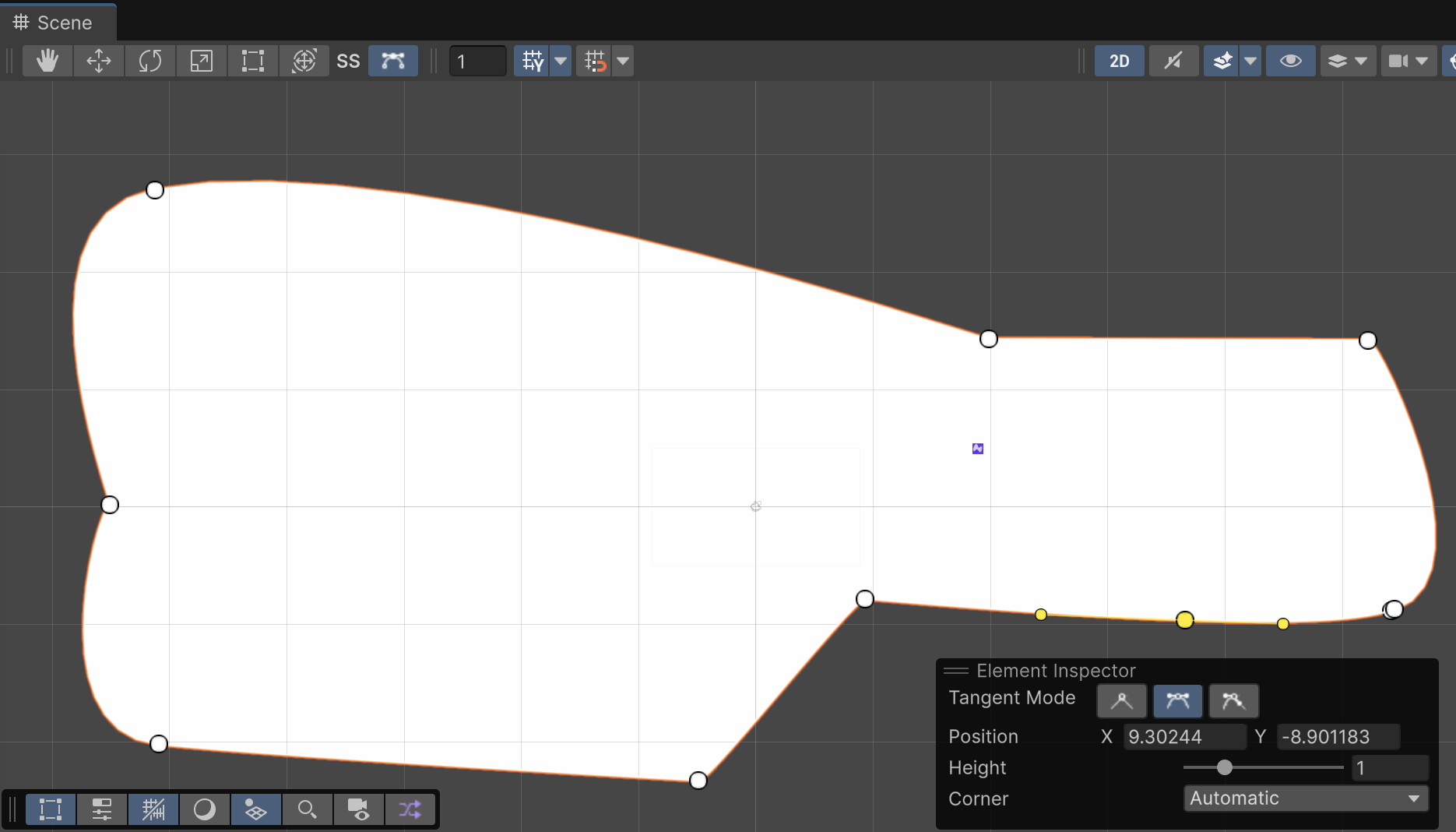

Controlling the Sprite Shape using Splines

• Splines are a series of points that define the shape of the sprite
• We can add points by clicking on the Splines button

Splines

Spline Point Options

• There are three types of points:
  • Linear - A straight line between the two points
  • Continuous - A smooth curve between the two points
  • Broken - A broken line between the two points

Splines

Start Designing Your Level

• Start designing your level by adding points to the spline and adjusting/stretching the points to create the shape of your level

Shape Profiles

• Shape profiles are used to determine the shape properties of the sprite
• Specify things like:
  • Collision detection
  • Rendering
  • Repeating textures
  • Materials
• Note: The default system shape profile is by default for the level sprite shape
  • We will want to create a new one for the level sprite shape. Most times you don’t want to modify the default system shape

Creating a New Shape Profile

Let’s create a new shape profile and use it for our level sprite shape.

1. Right-click in the assets folder -> 2D -> Sprite Shape Profile
2. Rename the Game Object to Level Sprite Shape Profile
3. Select the Level Sprite Shape in the hiearchy panel
4. In the inspector, select the Open Shape Profile and select the Level Sprite Shape Profile

Edge Colliders

• Edge colliders are used to detect collisions with the edges of the sprite.
• Useful for creating objects that can move through each other, like a player or a projectile.

Your Turn

1. In the Hierarchy panel, select the Level Sprite Shape
2. In the Inspector, click on Add Component -> Edge Collider 2D

Dynamic Sprite Shapes

• Dynamic sprite shapes are sprite shapes that can be changed at runtime.
• They are useful for creating objects that can be changed at runtime, like a player or a projectile.
• They automatically add a Rigidbody2D and a Collider2D component.

Your Turn

1. In the Hierarchy panel, right-click -> 2D object -> Physics -> Dynamic Sprite
2. Rename the Game Object to “Ball”

Does the ball roll down the slope?

Moving Platforms & Moving Cameras

• Let’s revisit the Cinemachine camera package.
• We will use the Follow Camera to follow the player.
• We can use another camera to Zoom in or out when the player hits a powerup.

Your Turn

Add the package to your project if you don’t have it already.

1. Go to Window -> Package Manager -> Cinemachine -> Install.
2. Add a Cinemachine camera in the hierarchy.
3. Right-click in the hieararchy -> Cinemachine -> Cinemachine Camera
4. Set the Tracking Target to the ball and test it.

Your Turn

Let’s add a character to the game to replace the ball. You can use one of the characters from the assets folder or find your own.

1. Create a parent object for the Player.
2. Add a character asset to the parent object.
3. Add a Capsule Collider 2D component to the parent object for the board of the player.

Surface Effector 2D

• Surface Effector 2D is a component that allows you to create a surface that the player can ride on.
• It is useful for creating objects that the player can ride on, like a platform or a ramp.

Your Turn

1. Add a Surface Effector 2D component to the parent object.
2. Set the Surface Type to Static.
3. Set the Use One-Way Collider to True.

Day 1 Recap

• Snow Level Shape (based on a closed shape sprite)
  • Used a shape profile to create the shape
    • Used splines to create the shape
    • Added a floor tile sprite for the shape
    • Used a floor tile fill to create the texture
  • Edge Collider 2D (so the player can’t fall through)
  • Surface Effector 2D (for the player to move on)
• Player (based on a character asset)
  • Used a Rigidbody2D (for physics)
  • Used a Bearcat sprite as an asset for the player

Day 2 Task List

1. Input system actions and Vector2s for movement
2. Rotation, torque, and angular damping
3. Layers and triggers for detecting win/lose

Workshop Day 2 Starting `

• If you were not able to finish Day 1 code, you can clone the repository from https://github.com/LucasCordova/Snowboarder

• I will take tags for each day we add functionality.

Input System

• The Input System is a new system for handling player input in Unity.
• It is more flexible and performant than the legacy input system, though a bit more complicated.

Input System Actions

• Input System Actions are a way to create a set of actions that can be used to control the player.
• In the Assets folder, you should have a file called Input Action Asset.asset.
• If you don’t have it or you delete it, you can create it by right-clicking in the Assets folder -> Create -> Input Action Asset or go to the Project Settings -> Input System -> Input Action Asset and click the Create Asset button.

Vector2

• Notice that in the InputSystem_Actions asset, the Control Type is a Vector2.
• Vector2 is a struct that represents a 2D vector.
• It is useful for representing positions, velocities, and other 2D vectors with x and y components.

Your Turn

1. In the InputSystem_Actions, let’s remove all the actions from the Input Action Asset except for Move.
2. Let’s practice with customizing the Move action in a script.
   1. On your Player object, add a MonoBehaviour script called PlayerController.
   2. Add an instance variable for an InputAction called MoveAction.
   3. Find the Move action using the Input System’s FindAction method in Start().
   4. In Update(), create a Vector2 called moveAction and set it to the value of moveAction.ReadValue<Vector2>().
   5. Put a debug statement either using Debug.Log(moveAction) or print(moveAction) to verify that moveAction is working.
   6. What is the value of moveAction when you move the player?

Player Controller Script

using UnityEngine;
using UnityEngine.InputSystem;

public class PlayerController : MonoBehaviour
{
    InputAction moveAction;
    void Start()
    {
        moveAction = InputSystem.actions.FindAction("Move");
    }

    void Update()
    {
        Vector2 moveVector = moveAction.ReadValue<Vector2>();
        print(moveVector);
    }
}

Rotation

• Rotation will occur around the Z-axis for 2D.
• We don’t want to modify the Z-axis directly, so we will use Torque for rotation.
• If you are using a Rigidbody, you should do rotation using Torque.
• Create an instance variable for the Rigidbody2D called rigidbody2D and get the Rigidbody2D.
• We’re going to get the Rigidbody2D using the GetComponent<Rigidbody2D>() method in Start().
• Add a torqueAmount instance variable of type float and set it to 1f.
• In Update(), use the rigidbody2D’s AddTorque() method to add the torqueAmount to the Rigidbody2D.

Player Controller Script Updates

using UnityEngine;
using UnityEngine.InputSystem;

public class PlayerController : MonoBehaviour
{
    [SerializeField] float torqueAmount = 1f;
    InputAction moveAction;
    Rigidbody2D rigidbody2D;
    void Start()
    {
        moveAction = InputSystem.actions.FindAction("Move");
        rigidbody2D = GetComponent<Rigidbody2D>();
    }

    void Update()
    {
        Vector2 moveVector = moveAction.ReadValue<Vector2>();

        if (moveVector.x > 0f)
        {
            rigidbody2D.AddTorque(-torqueAmount);
        }
        else if (moveVector.x < 0f)
        {
            rigidbody2D.AddTorque(torqueAmount);
        }
    }
}

Angular Damping

• Angular Damping is a property of the Rigidbody2D component that controls the amount of angular drag applied to the Rigidbody2D.
• It’s sort of like friction for rotation.
• It is useful for slowing down the rotation of the Rigidbody2D.
• Let’s set the Angular Damping to 15 to slow down the rotation of the Rigidbody2D.
• Does the player slow down when you stop moving?

Let’s Add a Finish Line

• Let’s add a finish line to the game.
• Use of the flag posts in the Assets folder to the end of the scene and name it Finish Line.
• Add a Box Collider 2D component to it and click the Is Trigger checkbox.
• Let’s set the size of the box collider to Y = 50 to cover the area of the post above the finish line.
• Create a new script called FinishLine and add it to the Finish Line Game Object.
• In the FinishLine script, add a OnTriggerEnter2D() method to handle the collision with the finish line with a debug log statement to say “You finished the level!”.

Layers

• Layers are a way to organize your game objects.
• Layers are useful for creating different levels of detail in your game.
• We can create a new layer called Snow Level and add the Snow Level Game Object to it.
• We can then create a new layer called Player and add the Player Game Object to it.

Let’s Use the Layers to Detect Win/Lose

• For Win:

  • Update the FinishLine script to use the layers to detect when the player has finished the level by detecting if the it was the Player Level layer that we collided with.
  • Create an integer variable called layerIndex and set it to LayerMask.NameToLayer(“Player”).
  • In the OnTriggerEnter2D() method, check if the layerIndex is equal to the Player Level layer and then print out the message.

• For Lose:

  • Add a Circle Collider 2D to the player’s head area.
  • Add a new script called CrashDetector and add a OnTriggerEnter2D() method to handle the collision with the crash detector with a debug log statement to say “You crashed into something!”.
  • Test it!

Day 2 Recap

1. Input system actions and Vector2s for movement
2. Rotation, torque, and angular damping
3. Layers and triggers for detecting win/lose

Day 3 Task List

1. Namespaces and Scene Management
2. Using Invoke() for Delays
3. Adding Particle Systems for Finish Line, Crash, and Snow
4. Using FindFirstObjectOfType()
5. Using OnCollisionExit
6. Calculating Number of Flips

Namespaces

• Namespaces are a way to organize your code.
• They are useful for preventing name conflicts between different parts of your code.

Scene Management

• Scene Management is a way to manage your scenes.
• Scenes are managed as part of Build Profiles.
• The ScenesList is an an array of scenes that can be access by index.
• We can use the SceneManager class to load and unload scenes via the SceneManager.LoadScene() method.

Your Turn

1. In the FinishLine use the SceneManager to reload the current scene after the player has finished the level.

Reload Scene Code

SceneManager.LoadScene(0);
// or
SceneManager.LoadScene(SceneManager.GetActiveScene().buildIndex);
// or
SceneManager.LoadScene(SceneManager.GetActiveScene().name);

Adding a Delay with Invoke

• Two useful methods for adding a delay are:
  • Invoke
  • Coroutines
• Invoke() is a method that allows you to call a method after a delay.
• Invoke() is easier to use, but not as powerful.
• It is useful though for delaying the execution of a method.
• For example: we can use the Invoke() method to reload the current scene after the player has finished the level.
  • Invoke("NameOfMethod", delayInSeconds)

Limitations of Invoke

• Invoke() is limited to a single method call.
• The method you call must be in the same class as the one calling Invoke().
• It cannot take parameters.
• You should create a wrapper method in the class that is calling Invoke.

Your Turn

1. In the FinishLine use the Invoke() method to reload the current scene after the player has finished the level.
2. Instead of using a constant for the delay, use a SeralizedField for the delay.

Invoke() Code

[SerializeField] float delayInSeconds = 2f;


void OnTriggerEnter2D(Collider2D other)
{
  // Call the reload scene after colliding with the player
  Invoke("ReloadScene", delayInSeconds);
}

void ReloadScene()
{
  SceneManager.LoadScene(0);
}

Adding Particle Systems for Snow

• Particle systems will be a great way to add visual polish to the game for snow.
• We can use the particle system in several ways:
  • When the player is moving on the snow
  • When the player is crashing
  • When the player is finishing the level
  • When the player is flipping? …

Particle System Settings for Finish Line (tweak as desired)

• Duration: 0.2 seconds
• Loop: unchecked
• Play on Awake: unchecked
• Start Speed: 5 or better:
  • Random between 5 and 10
• Start Color:
  • Random between two colors: light green and light blue
• Start Lifetime: 0.3 seconds or better:
  • Random between 0.2 and 1 second
• Emission
  • Rate Over Time: 200
• Shape:
  • Shape: Sphere
• Renderer:
  • Material:
    • Can use a material for the snow or just leave the squares.

Controlling Particle Systems Programmatically

• We can control particle systems programmatically by using the ParticleSystem object reference.
• Use the .Play() method to play the particle system.
• Use the .Stop() method to stop the particle system.
• Use the .Pause() method to pause the particle system.
• Use the .Clear() method to clear the particle system.
• Use the .Emit(int count) method to emit a number of particles.
• Use the .SetBurst() method to set a burst of particles.
• Use the .SetEmissionRate() method to set the emission rate of the particle system.

Detecting When to Start/Stop Particle Systems

• We can detect when to start/stop particle systems by using the OnTriggerEnter2D() and OnTriggerExit2D() methods.
• We can use the collision parameter to get the other game object that entered the trigger.

Start Particle System Code

void OnTriggerEnter2D(Collider2D other)
{
  // ...
  // Start the particle system
  particleSystem.Play();
}

Stop Particle System Code

void OnTriggerExit2D(Collider2D other)
{
  // ...
  // Stop the particle system
  particleSystem.Stop();
}

Particle System Object Reference

• We can get a reference to the particle system by using the GetComponent<ParticleSystem>() method.
• We can also just assign the particle system to a variable in the class and assign it through the Inspector. <– this is what we will do

Your Turn

1. Add a particle system to the finish line.
2. Add a particle system to the player when they crash their head into the snow.
3. Add a particle system to the player while on the snow.

Particle System for While on the Snow

1. Create (or copy) a particle system for the snow.
2. Create a script called SnowTrail that detects when the player is on the snow.
3. When the player is on the snow, start the particle system.
4. When the player is not on the snow, stop the particle system.

Snow Trail Script

public class SnowTrail : MonoBehaviour
{
    [SerializeField] ParticleSystem snowParticles;

    void OnCollisionEnter2D(Collision2D collision)
    {
        int layerIndex = LayerMask.NameToLayer("SnowLayer");

        if (collision.gameObject.layer == layerIndex)
        {
            snowParticles.Play();
        }
    }

    void OnCollisionExit2D(Collision2D collision)
    {
        int layerIndex = LayerMask.NameToLayer("SnowLayer");

        if (collision.gameObject.layer == layerIndex)
        {
            snowParticles.Stop();
        }
    }
}

Day 3 Recap

1. Namespaces and Scene Management
2. Using Invoke() for Delays
3. Adding Particle Systems for Finish Line, Crash, and Snow
4. Using FindFirstObjectOfType()

Day 4 Task List

1. Customizing the speed of the player
2. Stop the player from controlling after crashing
3. Calculate flips
4. Score counter text
5. Activating power ups

Customizing the Speed of the Player

• Let’s say we want to increase the speed of the player when they hit the Up Arrow key.
• We’ll need a couple of instance variables to help us out:
  • baseSpeed
  • boostSpeed

Surface Effector 2D

• Recall that we used the Surface Effector 2D component to create the move effect.
• We will need an object reference to the Surface Effector 2D component in order to change the speed of the player.
• We can get a reference to the Surface Effector 2D component by using the GetComponent<SurfaceEffector2D>() method.
• We can also use FindFirstObjectOfType() to get a reference to the Surface Effector 2D component. <– this is what we will do

Get Surface Effector 2D Object Reference Code

SurfaceEffector2D surfaceEffector2D = FindFirstObjectOfType<SurfaceEffector2D>();

// ...

Slight Refactor of PlayerController

[SerializeField] float baseSpeed = 20f;
[SerializeField] float boostSpeed = 30f;
void Update()
{ // Refactored
  Vector2 moveVector = moveAction.ReadValue<Vector2>();
  RotatePlayer(moveVector);
  BoostPlayer(moveVector);
}
void BoostPlayer(Vector2 moveVector)
{
  if (moveVector.y > 0f) surfaceEffector2D.speed = boostSpeed;
  else surfaceEffector2D.speed = baseSpeed;
}

void RotatePlayer(Vector2 moveVector)
{
  if (moveVector.x > 0f) rigidbody2D.AddTorque(-torqueAmount);
  else if (moveVector.x < 0f) rigidbody2D.AddTorque(torqueAmount);
}

Stop the Player from Controlling after Crashing

• We want the stop the player from controlling after they crash.
• We can do this in PlayerController by adding a new property called canMove.
• We can then use a public method called DisableControls() to disable the controls.

Where would we call DisableControls() from?

Your Turn

1. Add a new property called canMove to the PlayerController script.
2. Add a new public method called DisableControls() to the PlayerController script.
3. In the DisableControls() method, set the canMove property to false.
4. In the Update() method, check if the canMove property is false and if so, return.
5. In the OnCollisionEnter2D() method in the CrashDetection, get the instance of the PlayerController and call the DisableControls() method.
6. Test it!

Disable Controls Code

// PlayerController
[SerializeField] bool canMove = true;
public void DisableControls() => canMove = false;

public void Update()
{
  if (!canMove) return;
  RotatePlayer();
  BoostPlayer();
  CalculateFlips();
}

// CrashDetection
void OnCollisionEnter2D(Collision2D collision)
{
    PlayerController playerController = FindFirstObjectOfType<PlayerController>();
    playerController.DisableControls();
}

Scoring System Feature

• We need a scoring system to motivate the player.
• We can track how many flips the player has done.

Algorithm for Calculating the Number of Flips

• We can use this algorithm:

  • Use Mathf.DeltaAngle to calculate the angle change every frame.
  • We’ll store the total rotation in a variable.
  • Once the player spins 360 degrees, we’ll increment the flip count.

Algorithm Continued

• We will need 3 more variables to count flips:

  • previousRotation: the rotation from the previous frame.
  • totalRotation: the total rotation we get from deltaAngle().
  • flipCount: the number of flips the player has done!

Code for Calculating the Number of Flips

  // PlayerController
  float previousRotation = 0f;
  float totalRotation = 0f;
  int flipCount = 0;

  public void CalculateFlips()
  {
    float currentRotation = transform.rotation.z;
    totalRotation += Mathf.DeltaAngle(previousRotation, currentRotation);
    previousRotation = currentRotation;
    if (totalRotation >= 360f)
    {
      flipCount++;
      totalRotation = 0f;
    }
    Debug.Log($"Flips: {flipCount}");
  }

Score Counter Text

• Use a Canvas to display the score counter text (Right click in the hierarchy panel -> UI -> Canvas).
• Add text: Canvas -> UI -> Text- TextMeshPro.
• Change the Text’s object name to ScoreText.
• You will be prompted to import the TMP Essentials package.
• Add some text to the Text object: like: Score: 0.
• In the Canvas property inspector, set the Canvas Scaler to Scale with Screen Size and set the Reference Resolution to 1920x1080.

Score Counter Text Continued

• Change the Font Size to something visible.
• Create a new Script called ScoreManager and attach it to the Canvas game object.
• Create an SerializeField for the scoreText.
• Tie the scoreText to the ScoreText object in the Inspector for the Canvas.

using TMPro;
using UnityEngine;

public class ScoreManager : MonoBehaviour
{
    [SerializeField] TextMeshProUGUI scoreText;
}

Score Manager Text Continued

• Add a new method called AddScore(int additionalScore) to the ScoreManager script.
• In the AddScore() method, add the additionalScore to the score and update the scoreText.

  private int score = 0;

  public void AddScore(int additionalScore)
  {
    score += additionalScore;
    UpdateScoreText();
  }

  private void UpdateScoreText()
  {
    scoreText.text = $"Score: {score}";
  }

Score Manager Text Continued

• In the PlayerController script, get the instance of the ScoreManager and call the AddScore() method.
• In the CalculateFlips() method, call the AddScore() method with the flipCount.

  // PlayerController
  ScoreManager scoreManager = FindFirstObjectOfType<ScoreManager>();
  scoreManager.AddScore(100);

Day 4 Recap

1. Customizing the speed of the player
2. Stop the player from controlling after crashing
3. Calculate flips
4. Score counter text

Day 5 Task

1. Scriptable objects
2. Enemy stats
3. Audio settings
4. Level data

What Are Scriptable Objects?

ScriptableObject is a Unity class that allows you to store large amounts of shared data independent from script instances.

Key Benefits:

• Data persistence in the editor
• Shared between scenes
• Memory efficient
• Asset-based workflows
• Reduces dependencies

Common Uses:

• Game configuration
• Item databases
• Enemy stats
• Audio settings
• Level data

Why Use Scriptable Objects?

The Problem

public class Enemy : MonoBehaviour {
    public float health = 100f;
    public float damage = 10f;
    public float speed = 5f;
}

Issues:

• Data duplicated across every Enemy instance
• Hard to manage at scale
• Difficult to balance without recompiling
• No data sharing between instances

The Solution: Data-Driven Design

[CreateAssetMenu(fileName = "EnemyData",
                 menuName = "Game/Enemy Data")]
public class EnemyData : ScriptableObject {
    public float health;
    public float damage;
    public float speed;
    public Sprite sprite;
}

public class Enemy : MonoBehaviour {
    public EnemyData data;

    void Start() {
        // Use data.health, data.damage, etc.
    }
}

Benefits: One asset, many references!

Creating a Scriptable Object

Step 1: Define the Class

using UnityEngine;

[CreateAssetMenu(fileName = "New Item",
                 menuName = "Inventory/Item")]
public class Item : ScriptableObject {
    [Header("Basic Info")]
    public string itemName;
    public Sprite icon;

    [Header("Properties")]
    [TextArea(3, 10)]
    public string description;
    public float weight = 1f;

}

Creating a Scriptable Object

Step 2: Create Asset in Unity

1. Right-click in Project window
2. Select Create → Inventory → Item
3. Configure values in Inspector
4. Reference asset in your scripts

Using Scriptable Objects

Referencing in Scripts

public class InventorySlot : MonoBehaviour {
    public Item item;  // Drag asset here in Inspector
    public int quantity;

    public void UseItem() {
        if (item != null) {
            Debug.Log($"Using {item.itemName}");
            Debug.Log($"Description: {item.description}");
        }
    }
}

The same Item asset can be referenced by multiple GameObjects!

Advanced Example: Weapon System

[CreateAssetMenu(menuName = "Weapons/Weapon Config")]
public class WeaponConfig : ScriptableObject {
    [Header("Visual")]
    public GameObject prefab;
    public Sprite uiIcon;

    [Header("Combat Stats")]
    public float damage;
    public float fireRate;
    public int magazineSize;
    public float reloadTime;

    [Header("Audio")]
    public AudioClip fireSound;
    public AudioClip reloadSound;
}

Advanced Example: Weapon Controller

public class WeaponController : MonoBehaviour {
    public WeaponConfig config;
    private float lastFireTime;
    private int currentAmmo;

    void Start() {
        currentAmmo = config.magazineSize;
    }

    public void Fire() {
        if (Time.time - lastFireTime < 1f / config.fireRate)
            return;

        if (currentAmmo > 0) {
            // Deal damage, play sound, etc.
            AudioSource.PlayClipAtPoint(config.fireSound,
                                       transform.position);
            currentAmmo--;
            lastFireTime = Time.time;
        }
    }
}

Common Patterns: Events

ScriptableObject Events

[CreateAssetMenu(menuName = "Events/Game Event")]
public class GameEvent : ScriptableObject {
    private List<GameEventListener> listeners =
        new List<GameEventListener>();

    public void Raise() {
        for (int i = listeners.Count - 1; i >= 0; i--) {
            listeners[i].OnEventRaised();
        }
    }

    public void RegisterListener(GameEventListener listener) {
        listeners.Add(listener);
    }

    public void UnregisterListener(GameEventListener listener) {
        listeners.Remove(listener);
    }
}

Common Patterns: Variables

Shared Variables

[CreateAssetMenu(menuName = "Variables/Float Variable")]
public class FloatVariable : ScriptableObject {
    [SerializeField] private float value;

    public float Value {
        get { return value; }
        set { this.value = value; }
    }

    public void Add(float amount) {
        value += amount;
    }

    public void Set(float amount) {
        value = amount;
    }
}

Multiple systems can read/write to the same value!

Common Patterns: Databases

Item Database

[CreateAssetMenu(menuName = "Database/Item Database")]
public class ItemDatabase : ScriptableObject {
    public List<Item> allItems;

    public Item GetItemByName(string name) {
        return allItems.Find(item =>
            item.itemName == name);
    }

    public List<Item> GetItemsByType(ItemType type) {
        return allItems.FindAll(item =>
            item.type == type);
    }

    public Item GetRandomItem() {
        return allItems[Random.Range(0, allItems.Count)];
    }
}

Best Practices

Do:

• Use for data that doesn’t change during gameplay
• Create focused, single-responsibility assets
• Use [CreateAssetMenu] for easy creation
• Organize assets in clear folder structures
• Use references instead of finding objects

Don’t:

• Store runtime state that needs to persist
• Use for data that needs to be saved per-player
• Modify values at runtime (unless you reset them)
• Confuse with MonoBehaviour scripts

Runtime Modifications

Careful with Runtime Changes!

public class DangerousExample : MonoBehaviour {
    public EnemyData enemyData;

    void Start() {
        // This modifies the ASSET itself!
        enemyData.health = 50;  //  Persists in Editor
    }
}

Solution: Copy values to instance variables

private float currentHealth;

void Start() {
    currentHealth = enemyData.health;  //  Safe
}

Advanced: Polymorphism

Abstract Base Classes

public abstract class Ability : ScriptableObject {
    public string abilityName;
    public float cooldown;

    public abstract void Activate(GameObject target);
}

[CreateAssetMenu(menuName = "Abilities/Damage")]
public class DamageAbility : Ability {
    public float damage;

    public override void Activate(GameObject target) {
        target.GetComponent<Health>()?.TakeDamage(damage);
    }
}

Advanced: Polymorphism

Using Different Abilities

public class AbilitySystem : MonoBehaviour {
    public List<Ability> abilities;

    public void UseAbility(int index, GameObject target) {
        if (index < abilities.Count) {
            // Works with any Ability subclass!
            abilities[index].Activate(target);
        }
    }
}

Different ability types, same interface!

Performance Considerations

Memory Benefits

• Without ScriptableObjects: Each enemy MonoBehaviour stores duplicate data
  • 100 enemies × 5 KB = 500 KB
• With ScriptableObjects: Shared reference to one asset
  • 100 enemies × 8 bytes (reference) + 5 KB (asset) = 5.8 KB

~86% memory reduction!

Serialization & Persistence

Important Notes:

1. ScriptableObjects save automatically in the editor
2. Changes persist across play sessions in editor
3. In builds, assets are read-only
4. For player-specific data, use:
   • PlayerPrefs
   • JSON serialization
   • Save system
   • Database

Design Pattern: Strategy Pattern

// Strategy interface
public abstract class AIStrategy : ScriptableObject {
    public abstract Vector3 CalculateMove(GameObject enemy);
}

// Concrete strategies
[CreateAssetMenu(menuName = "AI/Aggressive")]
public class AggressiveStrategy : AIStrategy {
    public override Vector3 CalculateMove(GameObject enemy) {
        // Move toward player
    }
}

[CreateAssetMenu(menuName = "AI/Defensive")]
public class DefensiveStrategy : AIStrategy {
    public override Vector3 CalculateMove(GameObject enemy) {
        // Keep distance
    }
}

Real-World Example: Audio Manager

[CreateAssetMenu(menuName = "Audio/Audio Collection")]
public class AudioCollection : ScriptableObject {
    [System.Serializable]
    public class AudioEntry {
        public string name;
        public AudioClip clip;
        [Range(0f, 1f)] public float volume = 1f;
        public bool loop;
    }

    public List<AudioEntry> sounds;

    public AudioEntry GetSound(string soundName) {
        return sounds.Find(s => s.name == soundName);
    }
}

Testing & Debugging

Inspector Tools

[CreateAssetMenu(menuName = "Debug/Test Config")]
public class TestConfig : ScriptableObject {
    [Header("Debug Options")]
    public bool godMode;
    public bool showDebugInfo;
    public float timeScale = 1f;

    [Header("Test Values")]
    public int startingLevel = 1;
    public float testDamageMultiplier = 1f;

    #if UNITY_EDITOR
    [Button] // Requires custom attribute
    public void ResetToDefaults() {
        godMode = false;
        timeScale = 1f;
        // etc.
    }
    #endif
}

Integration with Unity Events

public class GameEventListener : MonoBehaviour {
    public GameEvent gameEvent;
    public UnityEvent response;

    void OnEnable() {
        gameEvent.RegisterListener(this);
    }

    void OnDisable() {
        gameEvent.UnregisterListener(this);
    }

    public void OnEventRaised() {
        response.Invoke();
    }
}

Connect ScriptableObject events to UnityEvents in Inspector!

Comparison with Other Patterns

Pattern | Best For | Drawbacks |

||-|–| | ScriptableObjects | Shared static data | Not for runtime state | | Singletons | Runtime managers | Tight coupling | | Static Classes | Utilities | Hard to test | | PlayerPrefs | Simple save data | Limited types | | JSON Files | Complex save data | More overhead |

Common Pitfalls

1. Modifying in Play Mode

Values changed during play mode persist in the editor!

Solution: Reset values in OnDisable() or use instance copies

2. Circular Dependencies

ScriptableObject A references B, B references A

Solution: Use events or dependency injection

3. Overuse

Not everything needs to be a ScriptableObject!

Solution: Use for data that’s truly shared/reusable

Use Case: Character Stats

Create a Character Stats System

1. Define CharacterStats ScriptableObject
   • Health, stamina, speed
   • Armor, damage
   • Special abilities list
2. Create 3 character types:
   • Warrior (high health, low speed)
   • Rogue (high speed, low health)
   • Mage (balanced, special abilities)
3. Build a character selector that loads stats

Summary

Key Takeaways

✅ ScriptableObjects are data containers separate from GameObjects

✅ Perfect for shared configuration and asset-based design

✅ Enable data-driven development and designer-friendly workflows

✅ Great for memory efficiency and modularity

✅ Use for static data, not runtime state

✅ Powerful when combined with inheritance and events
